How to change the Connection Type in Connection settings for Automated Barcode in Device.

How to change the Connection type in device,

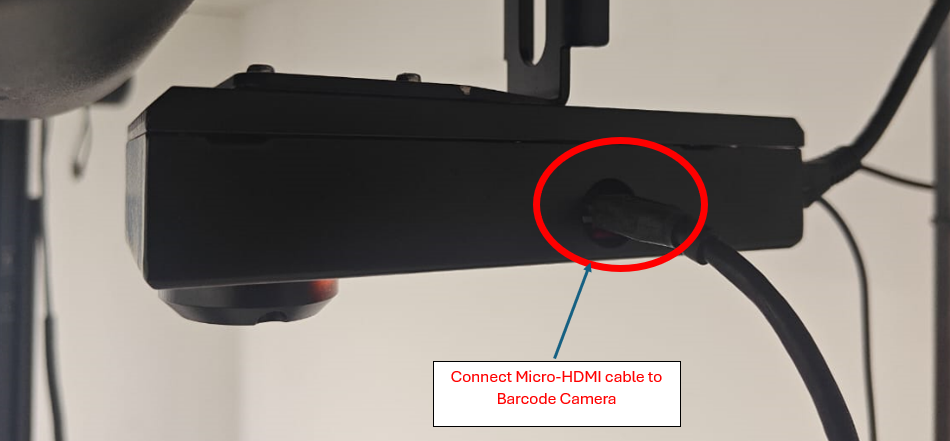

Step1: Connect an HDMI cable to a display and attach the other end (Micro HDMI) to the barcode reader.

Step 2: Power on the device.

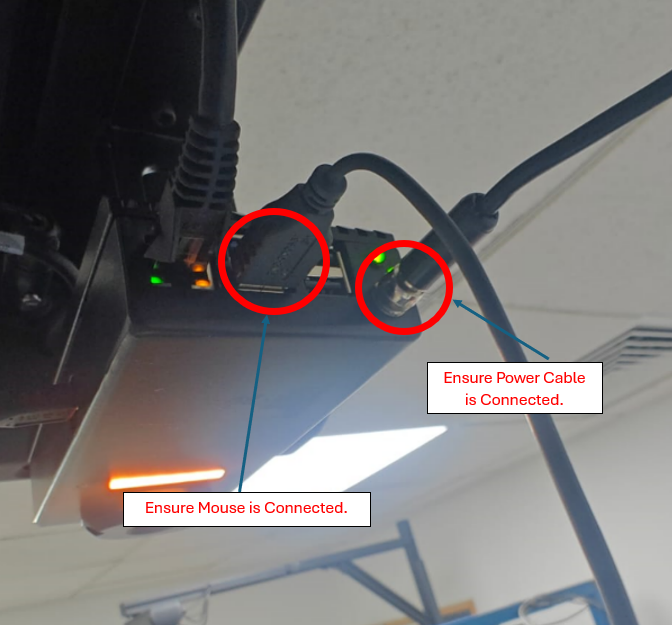

• Important: Before turning on the device, ensure that Power cable and USB Mouse are properly connected.

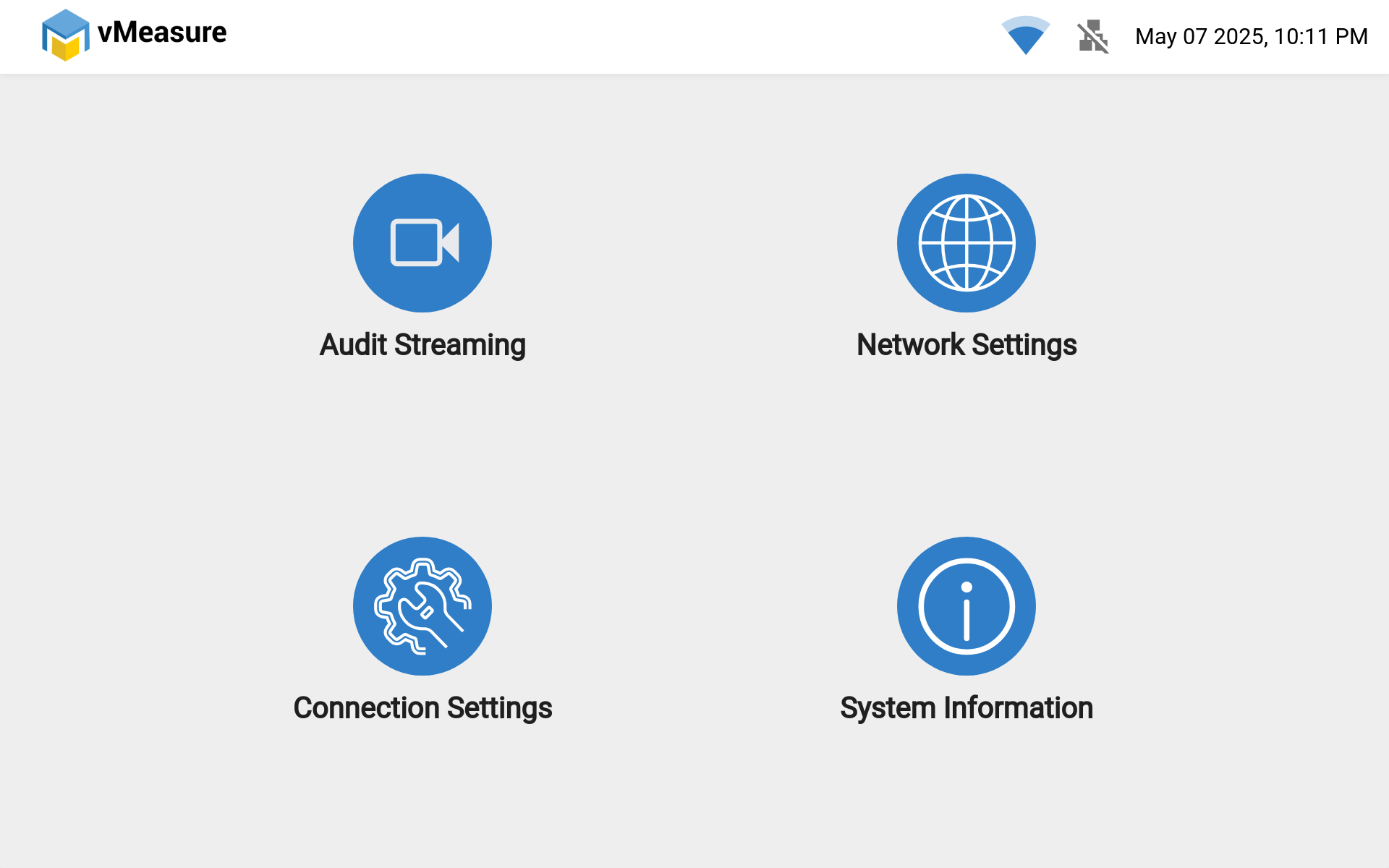

Step 3: Once the device boots up, it will enter the configuration page.

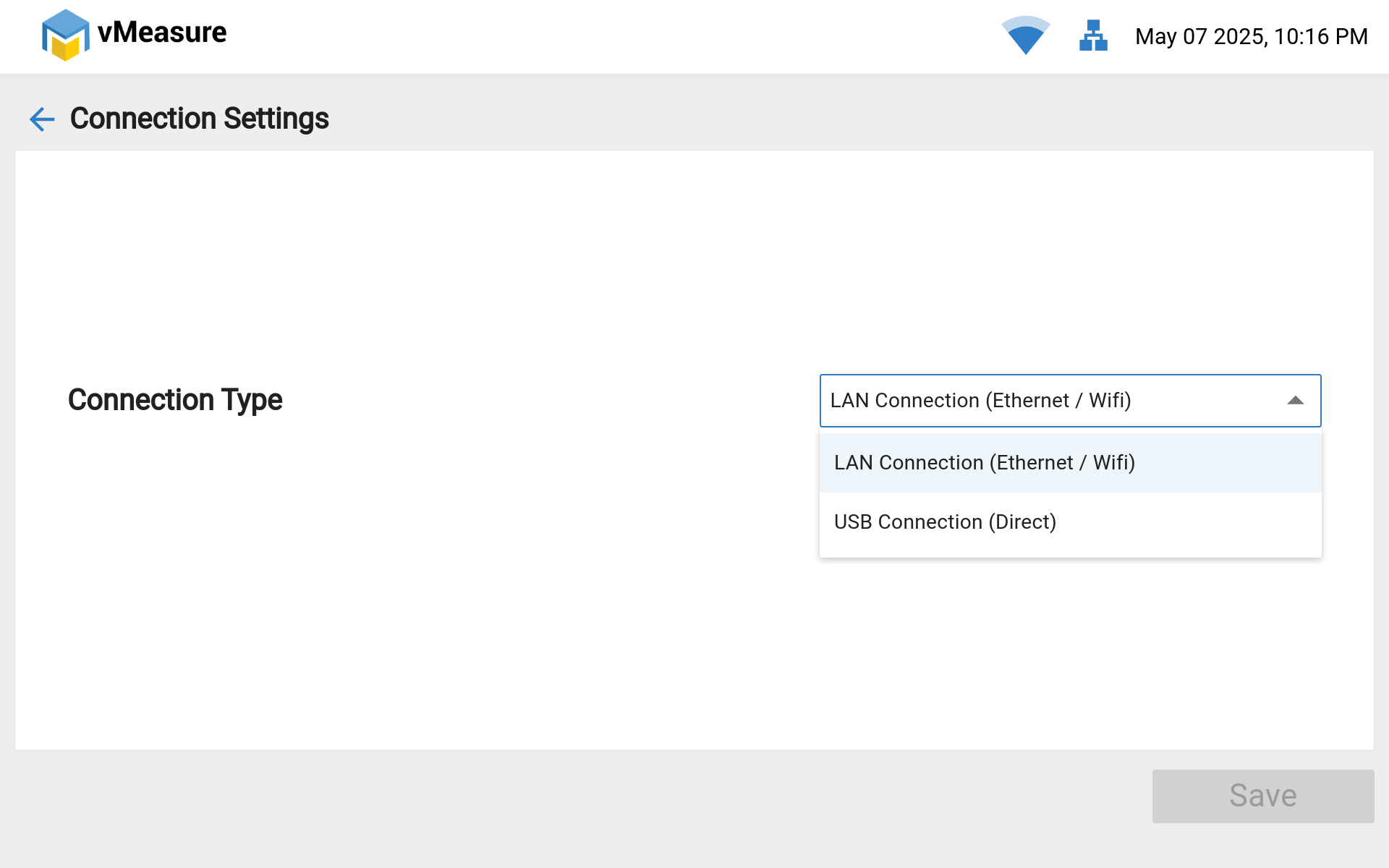

Step 4: Navigate to Connection Settings and select the connection type from the dropdown menu.

• By default, the connection type will be set to LAN (Ethernet/Wi-Fi).

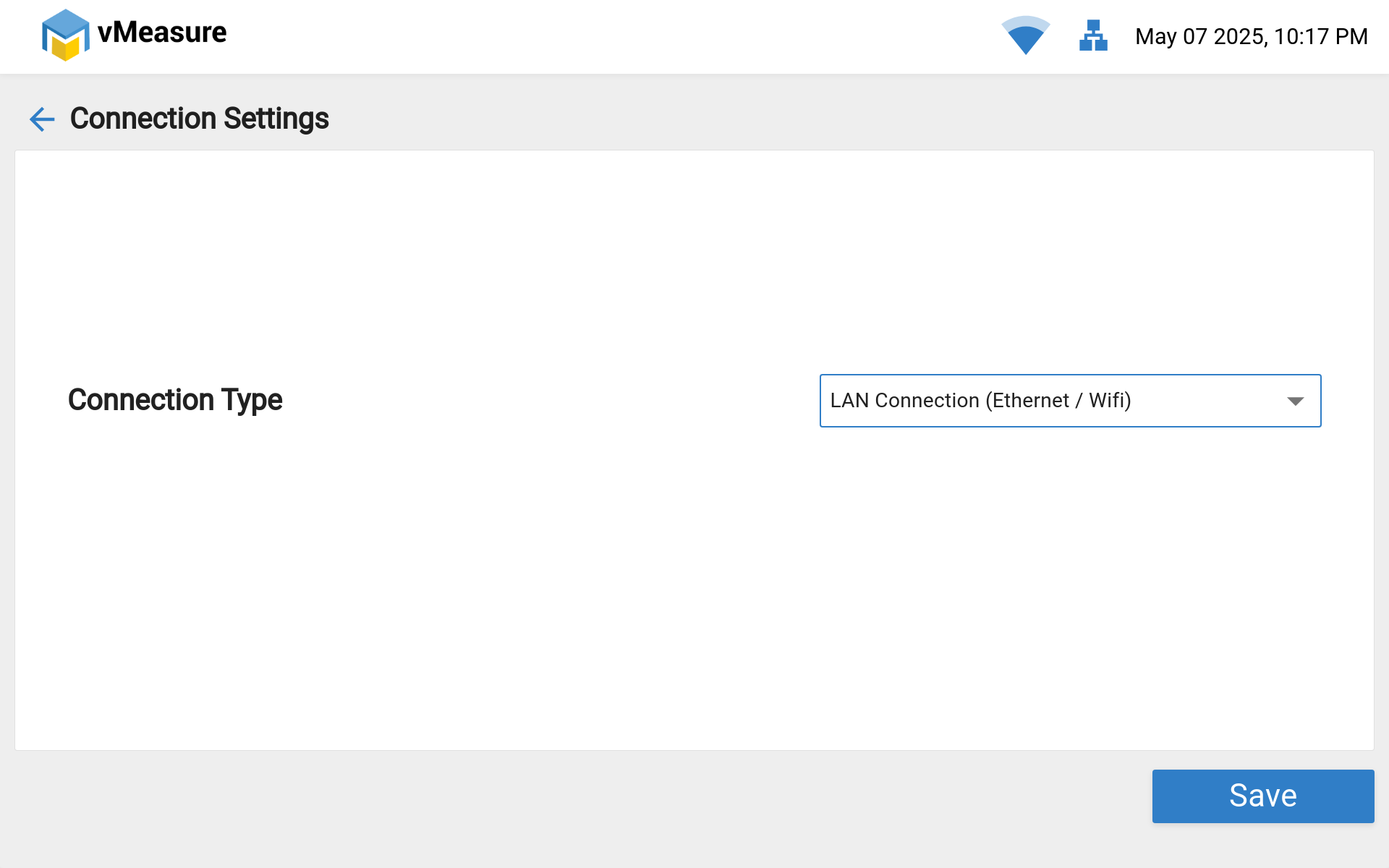

Step 5: You can select the connection type as per your need (LAN connection or USB connection), Then click "Save button" to save the option.

Note: Connection type should be same in both Forge and Device.
