Shipstation - Configuration (Chrome Extension)

Please find the below custom fill & additional integration barcode field configuration of ShipStation WMS

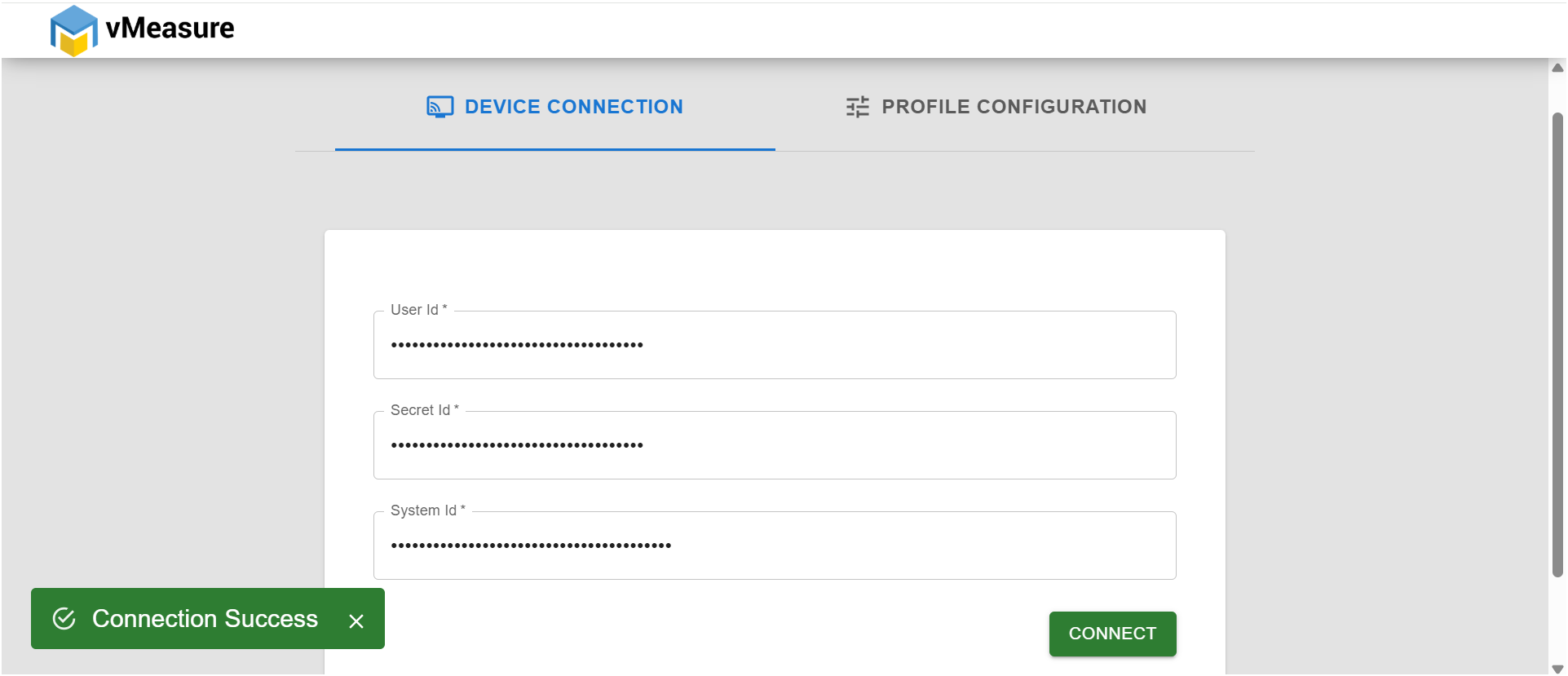

Step - 1: Download chrome extension and configure the userid, secretid and system token. Please find the KB article for same below:

KB Articles:

How to Obtain userid, secretid and system token from Forge

How to configure Chrome Extension

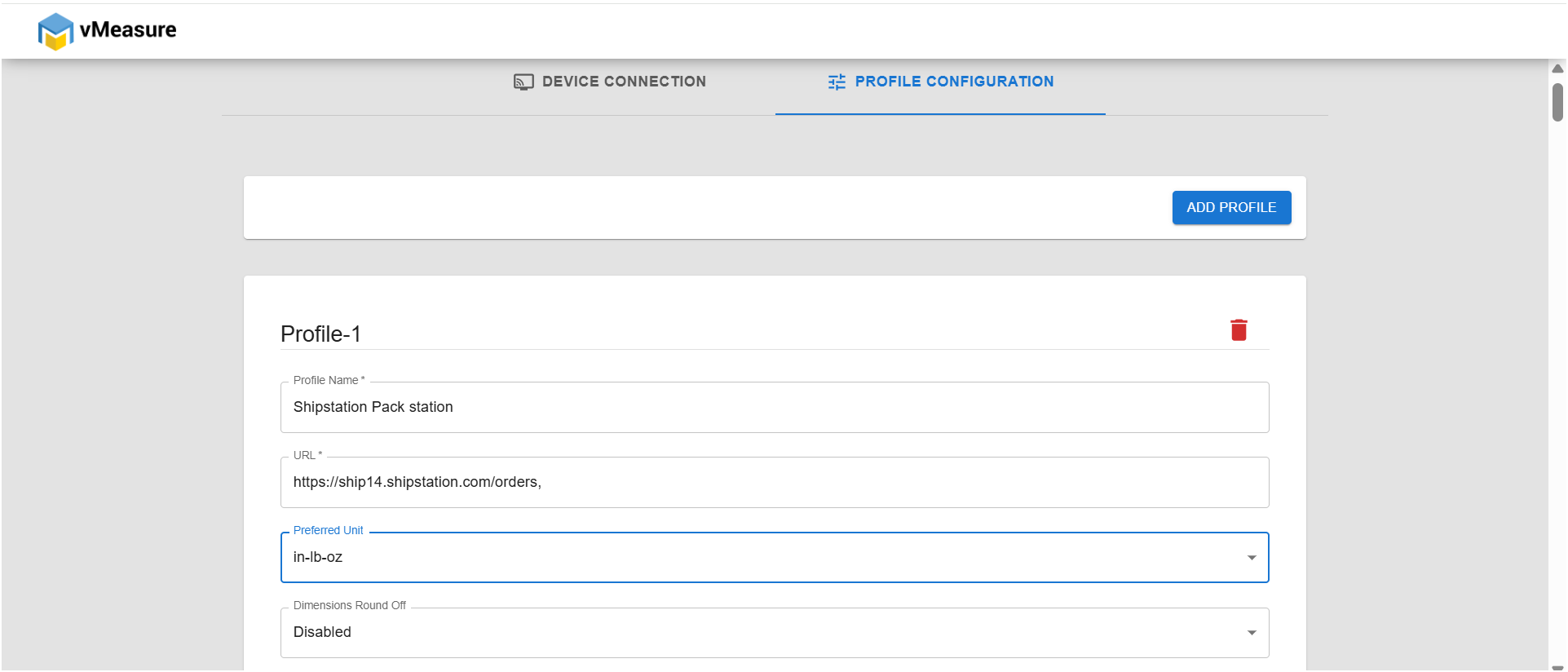

Step - 2: In profile configuration section, Click on "ADD PROFILE" & configure the settings as listed below.

          A. Profile name - ShipStation Pack station

          B. URL - https://ship14.shipstation.com/orders,

          C. Preferred Unit - in-lb-oz

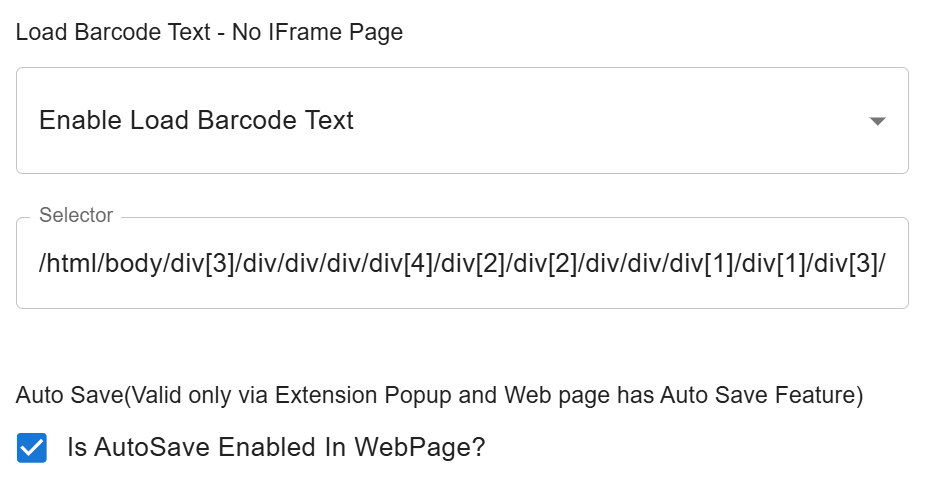

          D. Load Barcode Text - No IFrame Page - Enable load barcode text

           Selector - /html/body/div[3]/div/div/div/div[4]/div[2]/div[2]/div/div/div[1]/div[1]/div[3]/h4

          E. Enable the check-box of Is AutoSave Enabled In WebPage?

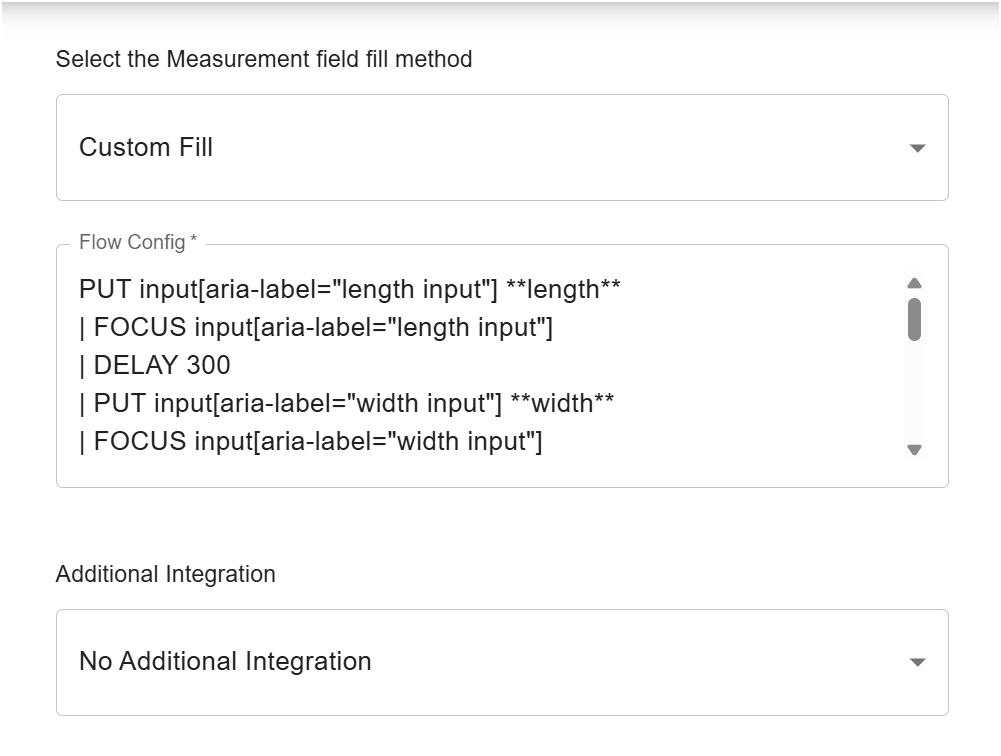

          F. Select the Measurement field fill method - Custom Fill

Flow Config -

PUT input[aria-label="length input"] **length**

| FOCUS input[aria-label="length input"]

| DELAY 300

| PUT input[aria-label="width input"] **width**

| FOCUS input[aria-label="width input"]

| DELAY 300

| PUT input[aria-label="height input"] **height**

| DELAY 300

| FOCUS input[aria-label="height input"]

| PUT input[aria-labelledby$="pounds"] **actualWeight**

| FOCUS input[aria-labelledby$="pounds"]

| DELAY 300

| PUT input[aria-labelledby$="ounces"] **auxiliaryActualWeight**

| FOCUS input[aria-labelledby$="ounces"]

| DELAY 300

| TAB input[aria-labelledby$="ounces"]

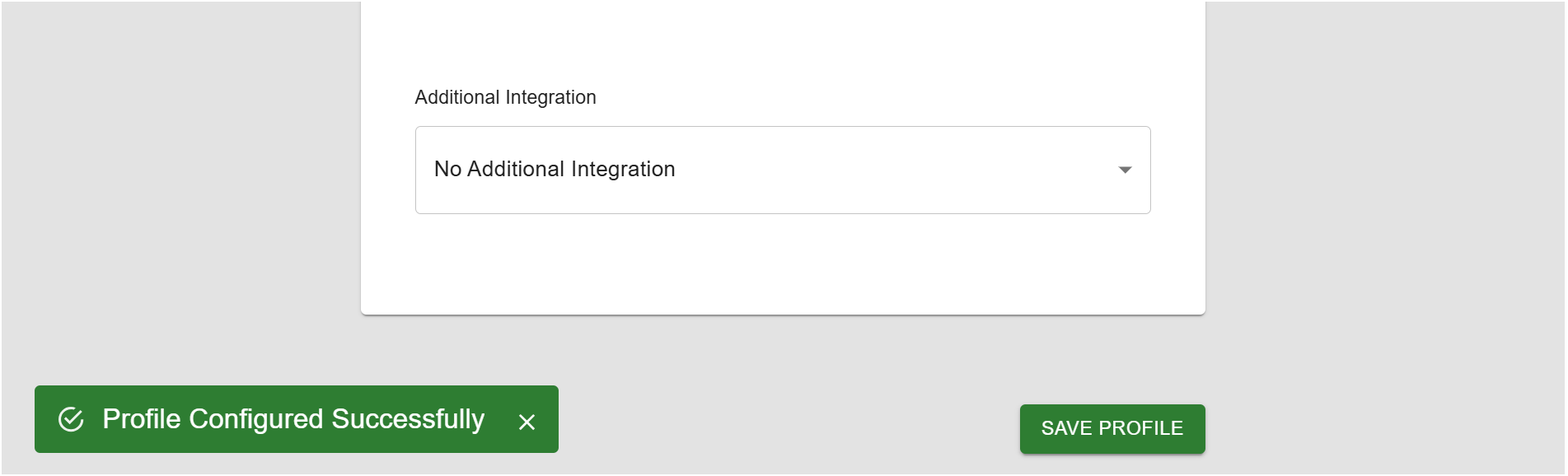

Step - 3: Click on "SAVE PROFILE" to save the ShipStation Profile configuration.

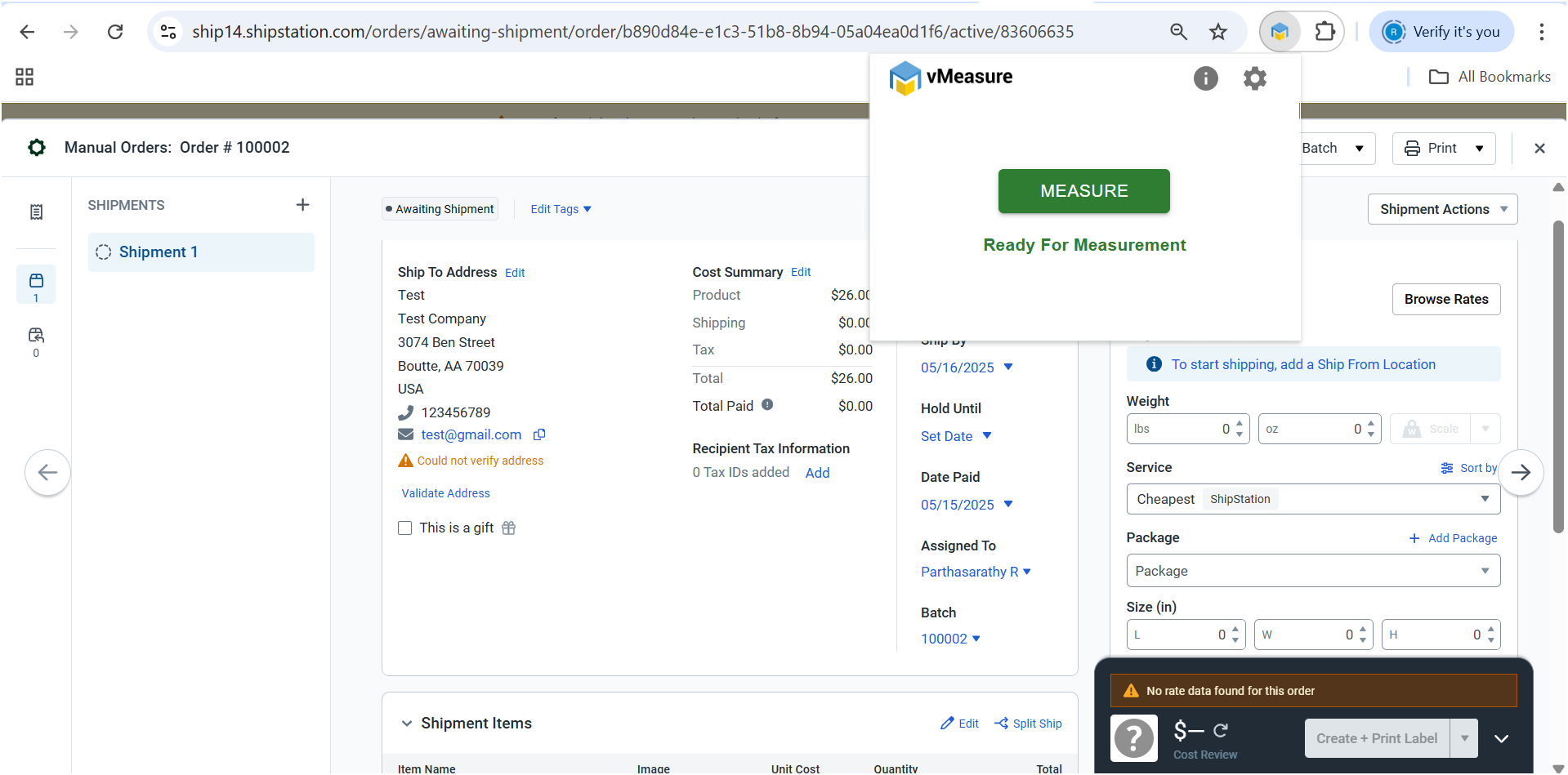

Step - 4: Go to the ShipStation WMS order page & Open the chrome extension shortcut to Trigger the measurement (Click on Measure button).

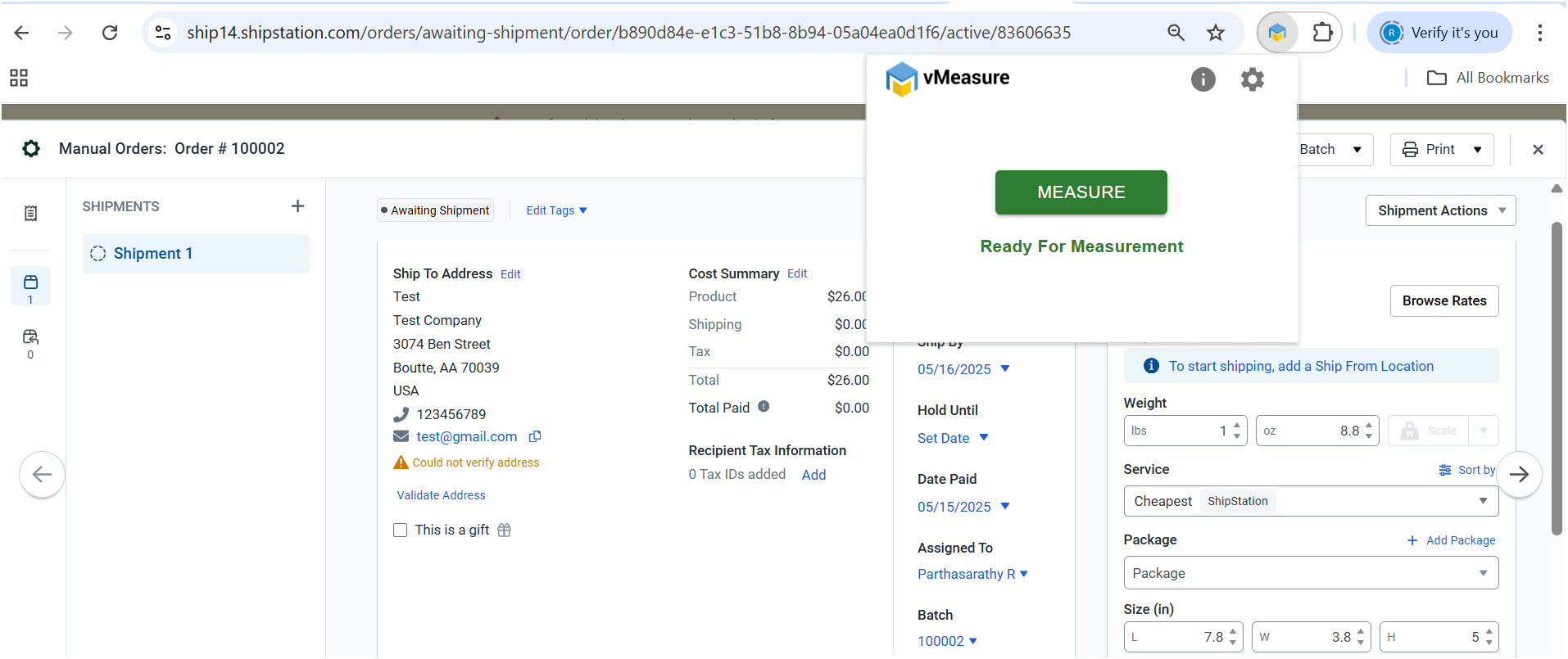

Step - 5: The dimensions and weight will automatically populate in ShipStation WMS.

ShipStation WMS is successfully integrated with vMeasure device.

If you need any support, please drop a mail to vmeasure@visailabs.com or Click Here to Summit a Ticket.
