vMeasure Parcle v2n + Jetson Nano power consumption rating

Product Name: Universal 1.5m Ultima with 4K + Jetson Nano

1. Introduction,

• vMeasure Parcel Ultima Dimensioning product can seamlessly capture and store high quality product images, dimensions and volumetric weighing details. In addition, it can integrate other devices such as barcode scanners, weighing scales, ERP, and WMS systems.

• vMeasure Parcel Ultima is a vision-based measurement system that can dimension SKUs. It comes with an in-built camera that captures photos of the measured objects. It can be connected to the Cloud using vMeasure Forge for data backup and analytics. The Vision Head Unit (VHU) in the vMeasure Ultima is classified as a CLASS 1 Laser Product under the EN/IEC 60825-1:2014 (EU)

2. Operating Conditions,

• Input Voltage Range: 85-264VAC ~50/60 Hz, 0.6A max

• Output Voltage Range: 5V – 14A/12V – 2.1A /12V-2A(DC)

• Environmental Conditions: 0 to 40C

3. Power Consumption Summary,

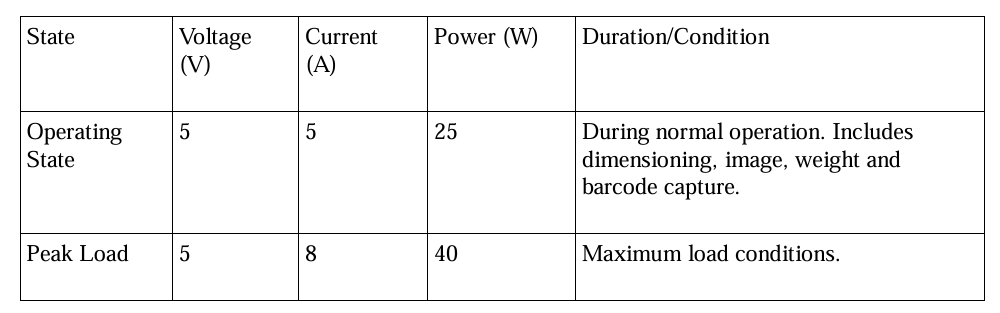

VHU (5V DEVICES)

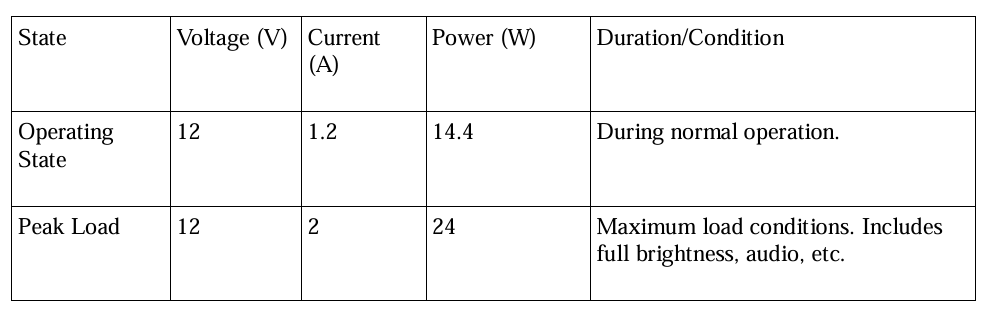

DISPLAY 12V

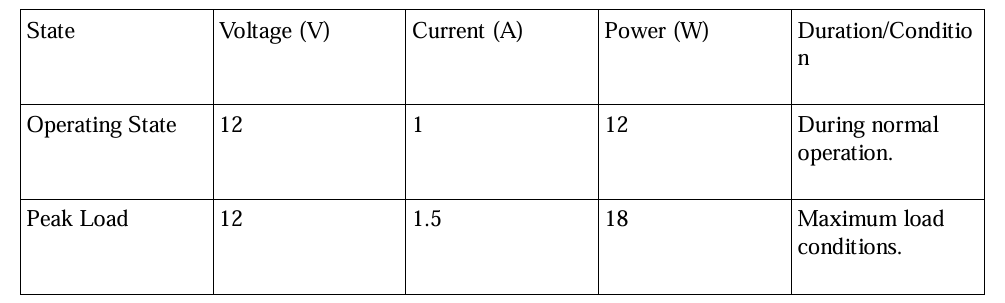

Jetson Nano

4. Calculation for Max Power Consumption,

For VHU – 5V -8A / for DISPLAY – 12V – 2A /for Jetson Nano-12V-1.5A

Watts for VHU 5V * 8A = 40W

Watts for Display 12V * 2 A = 24W

Watts for Jetson Nano 12V*1.5A = 18W

Total Watts is 82W

Formula = P(kW) = P(W) / 1,000 

P(kW) = 82/1000 = 0.082kwh

The power consumption of the device is 0.082 kWh. If the device runs continuously for 17 hours, it will be considered as 1 unit.

5. Calculation for Operating Power Consumption

For VHU – 5V - 5A / for DISPLAY – 12V – 1.2A /Jetson Nano-12V-1A

Watts for VHU 5V * 5A = 25W

Watts for Display 12V * 1.2A = 14.4W

Watts for Jetson Nano 12V*1A=12W

Total Watts is 51.4W
