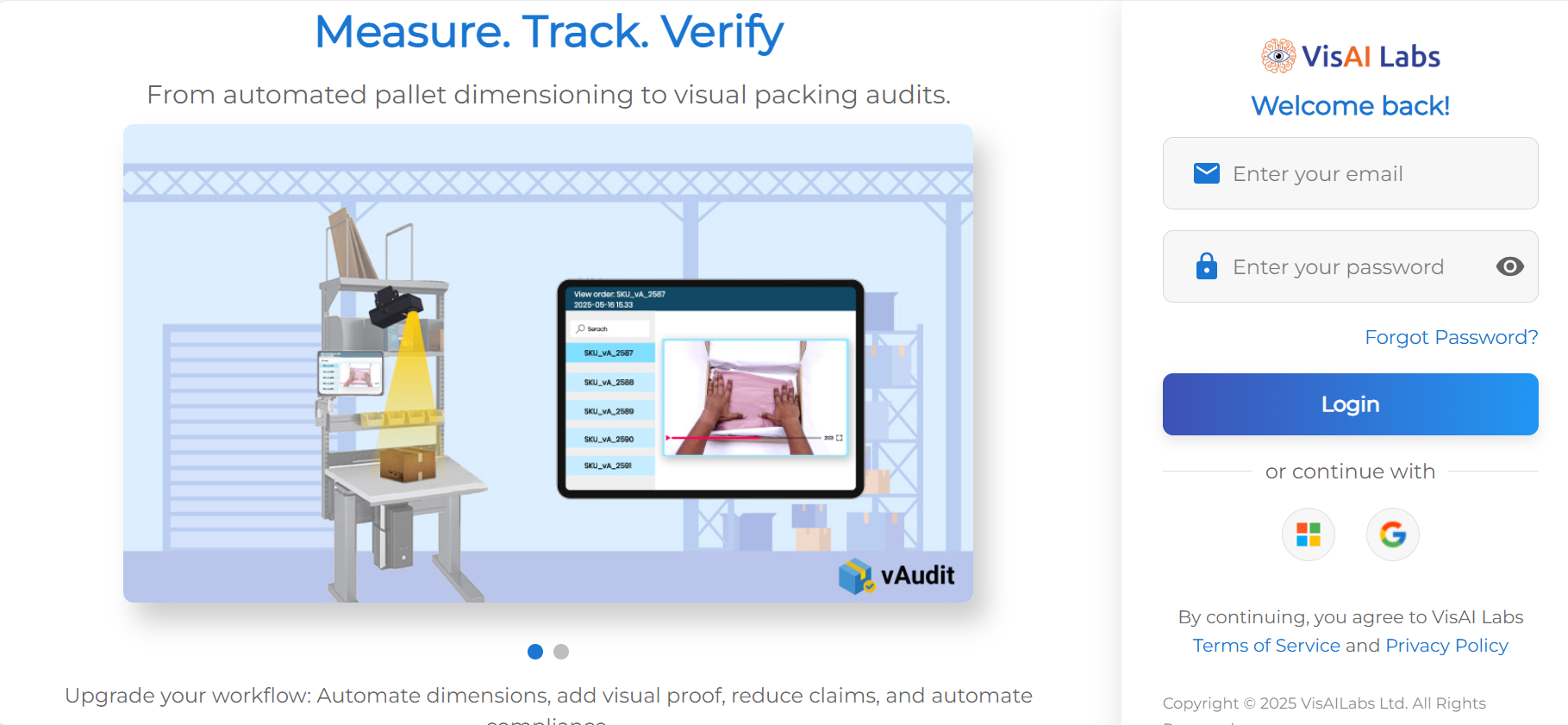

1. Login to vMeasure Forge.

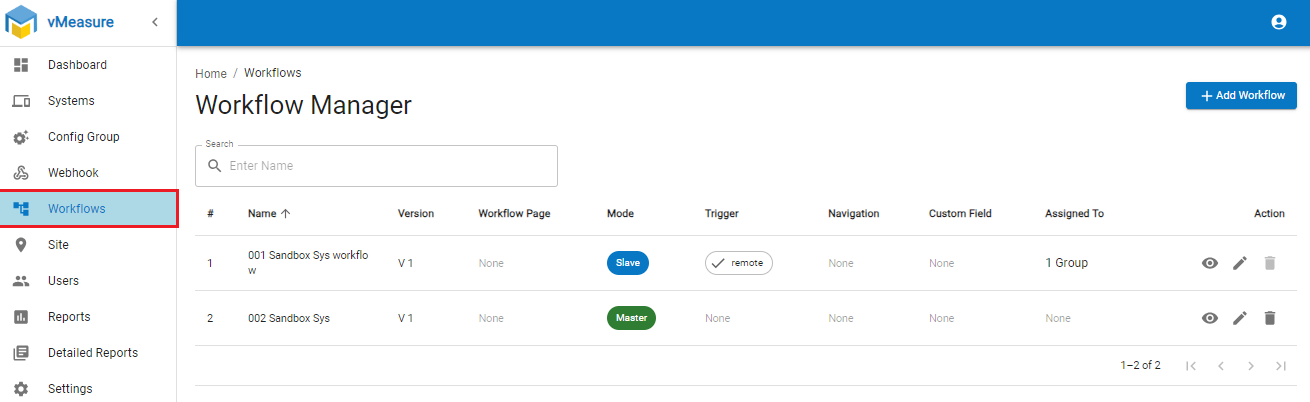

2. Navigate to the "Workflows" page as shown below.
3. Edit the desired workflow or add a workflow using the "+ Add Workflow" button.

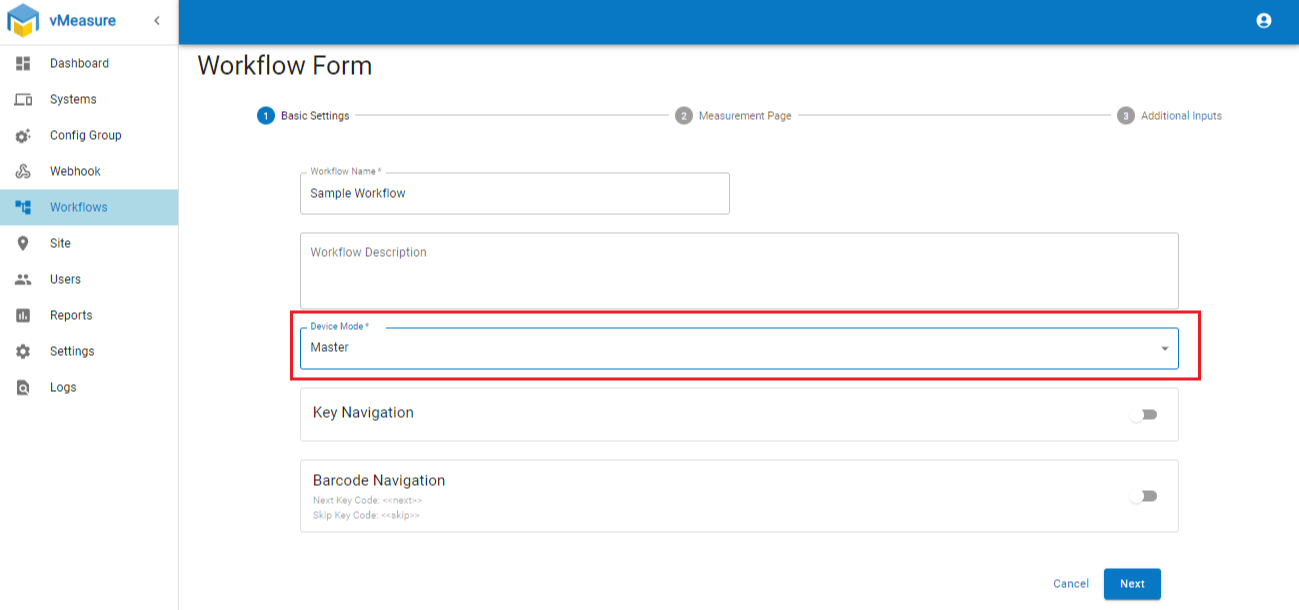

4. Configure the Basic Settings and click on the "Next" as shown below
Note: Please make sure to select Master from the Device Mode drop-down.

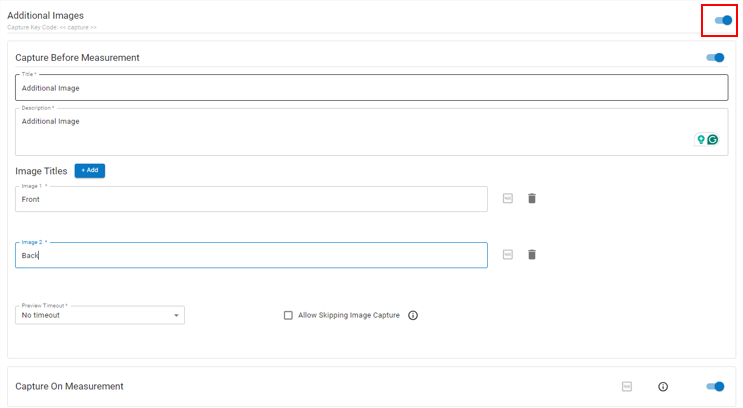

5. Scroll down and navigate to “Additional Image” to enable the additional image and fill in the required details.
6. You can add a maximum of 3 Image Titles.
7. Click on the Next button and Save the workflow.

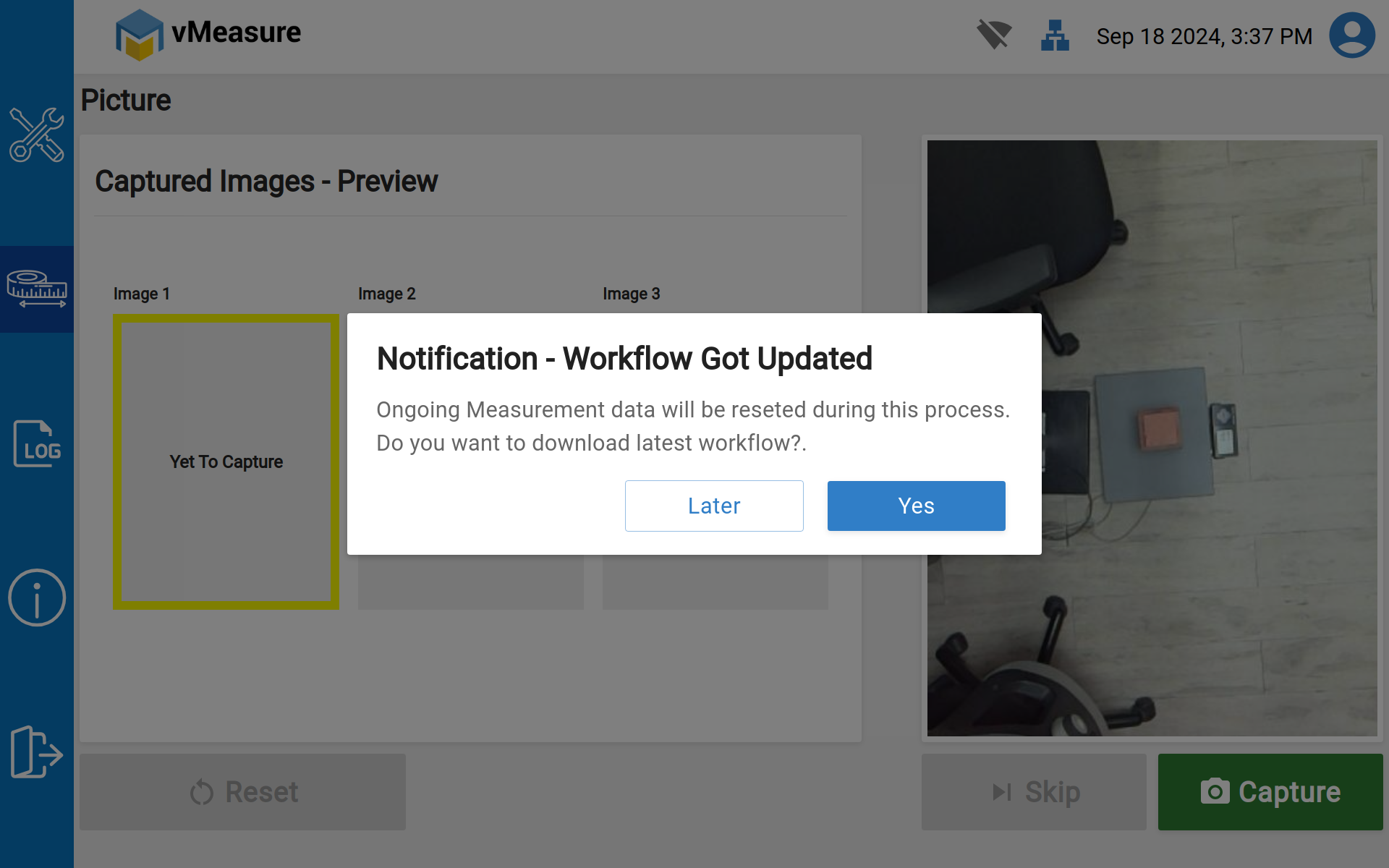

8. On the vMeasure system, you'll be getting a prompt "Workflow got updated", Click "Yes".
Once Your workflow got updated.

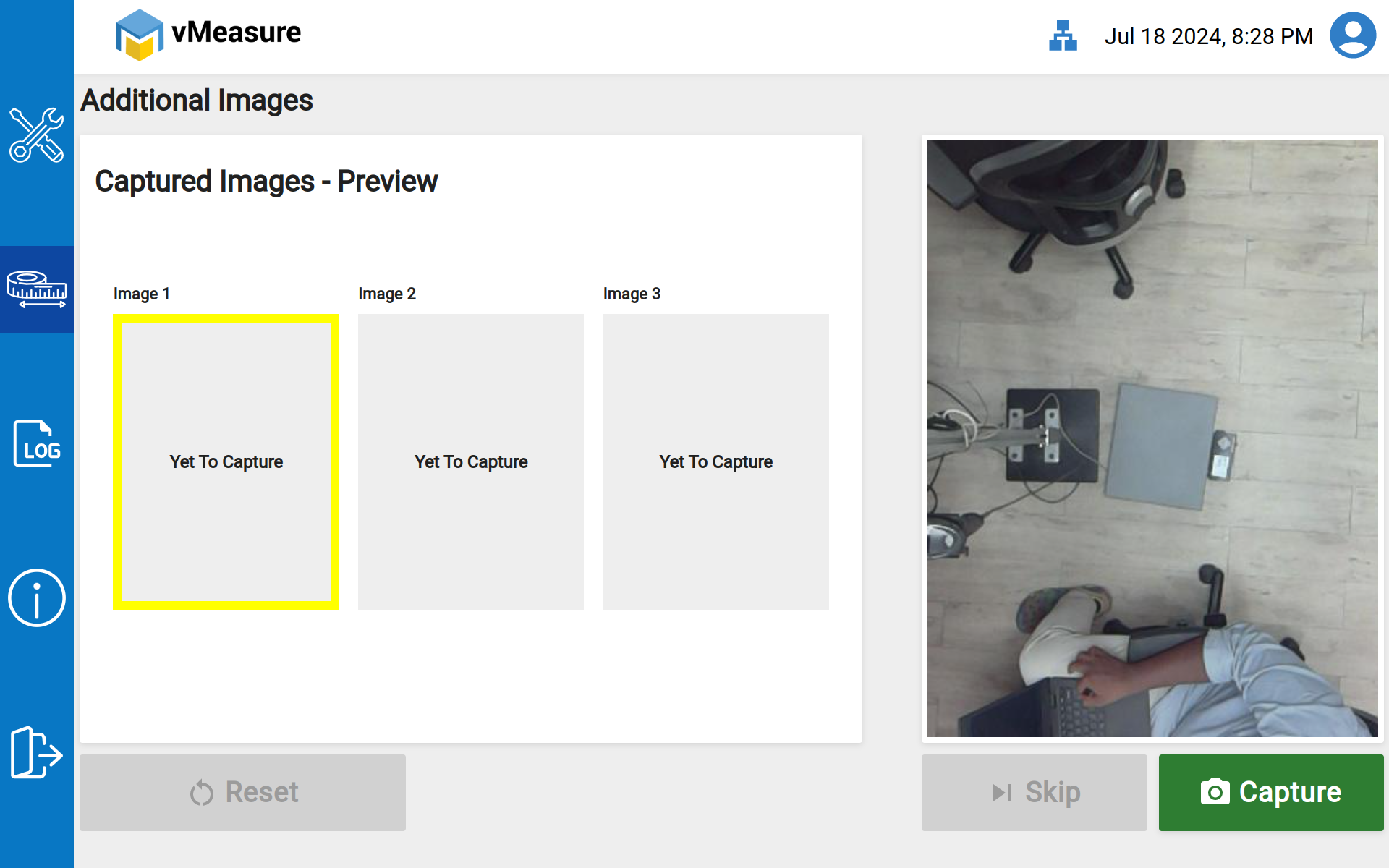

Kindly find the example Image of UI in the device.

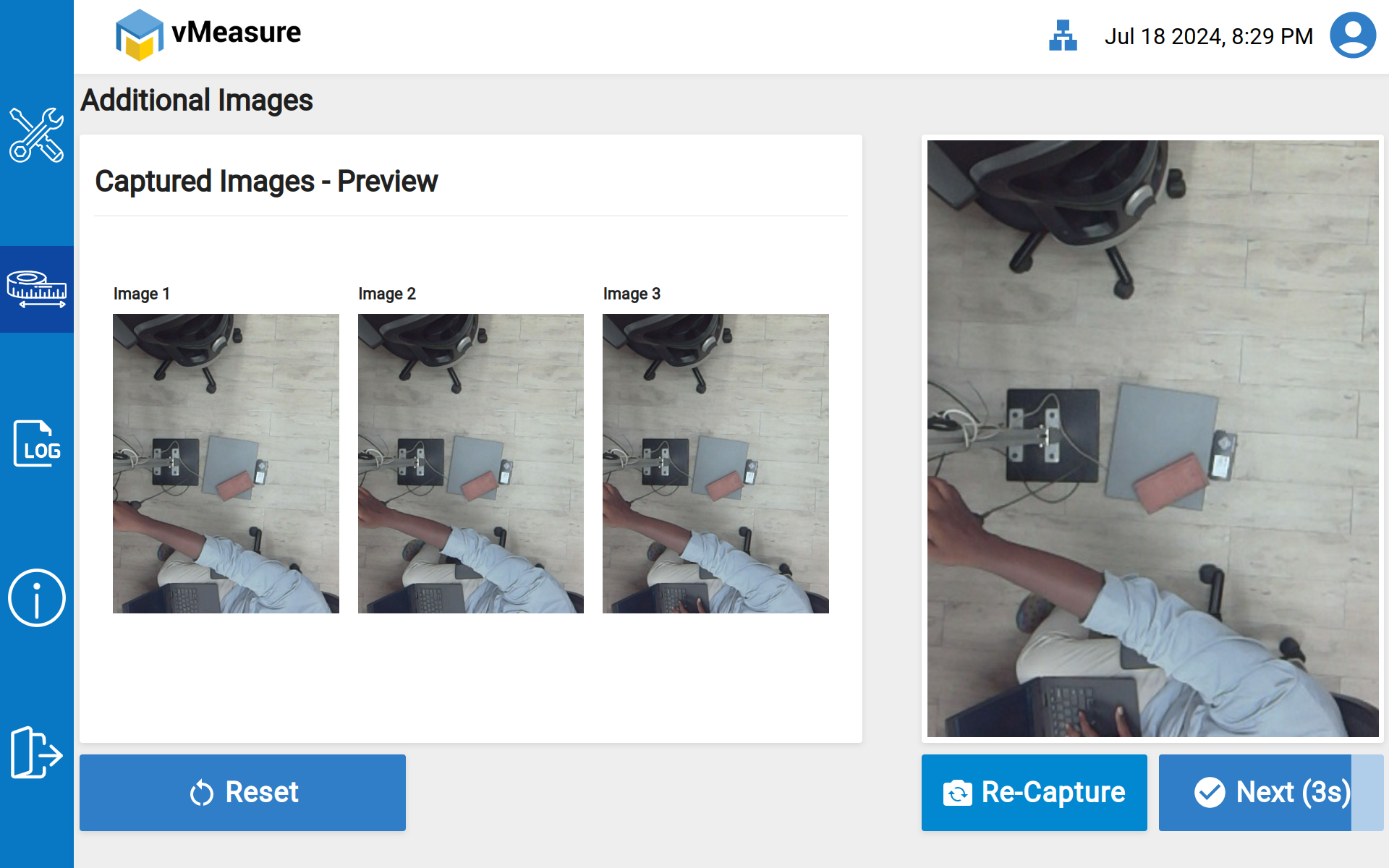

Click Capture to Capture the Images.

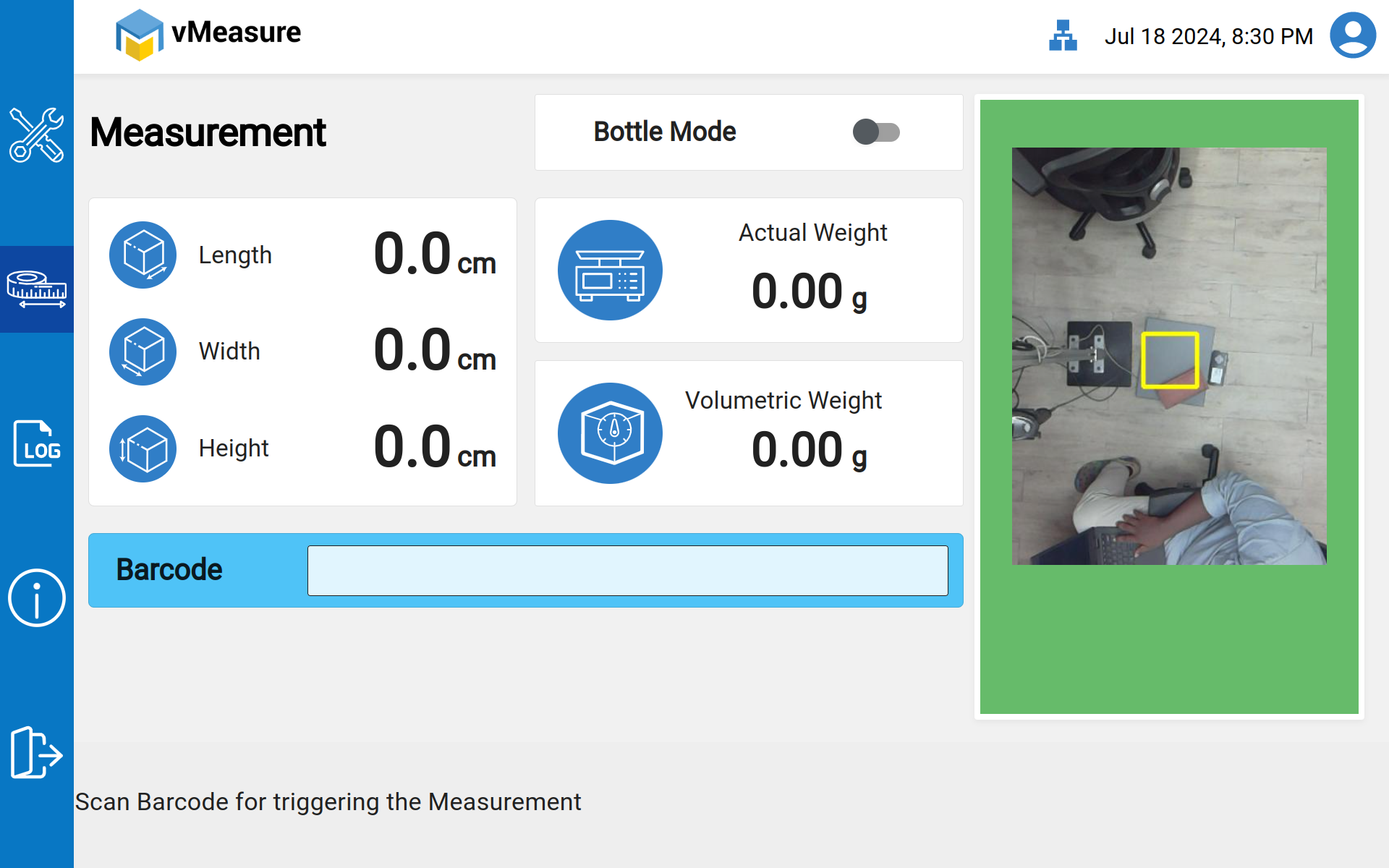

After it will redirect you to the Measurement page for Measurement.
To Download the Image please find the below link for reference:
If you need any support , please drop a mail to vmeasure@visailabs.com
