How to change the display orientation from front-orientated position to side-orientated position

Follow the steps outlined below to change the display orientation:

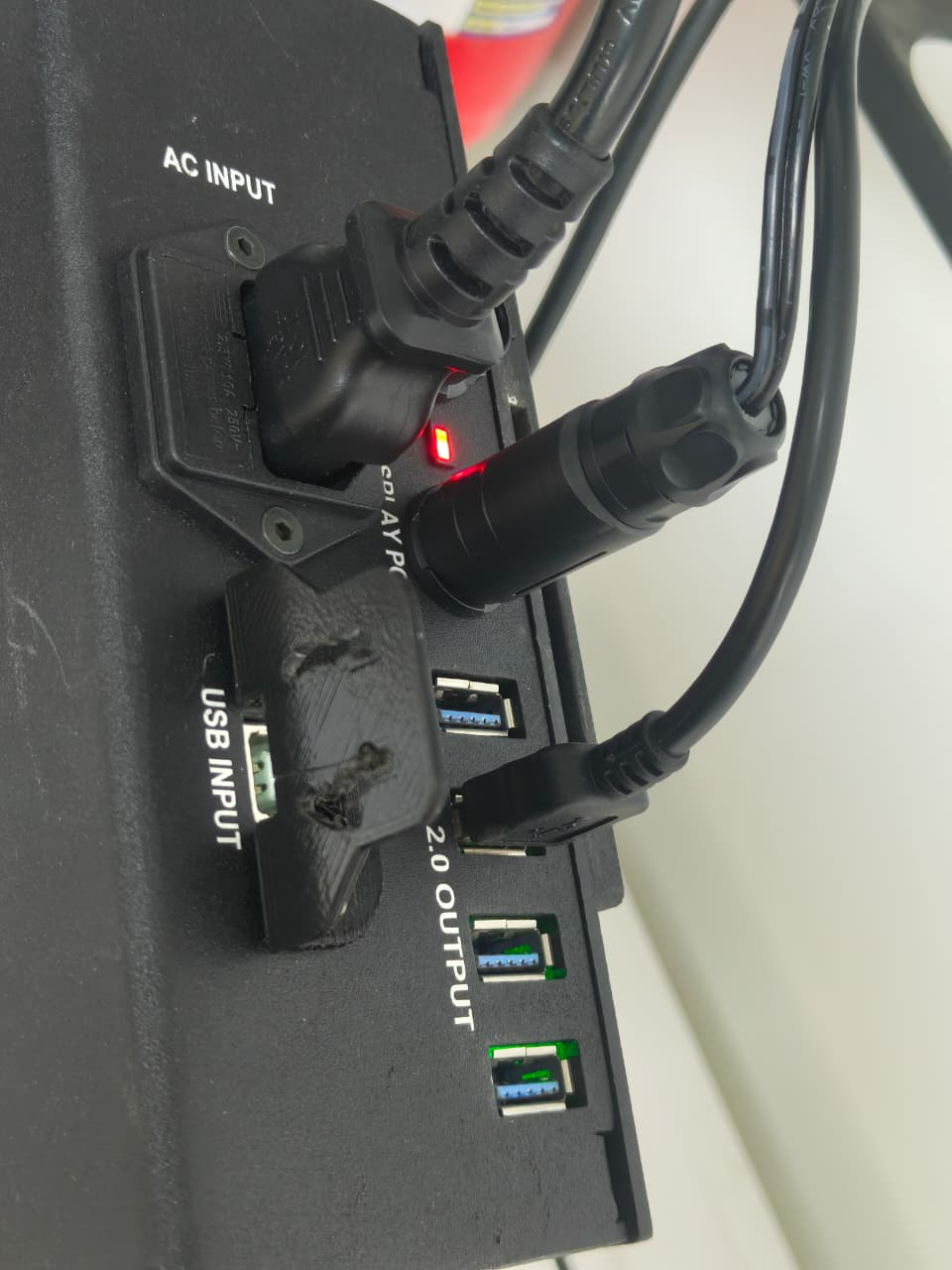

Step - 1: Turn off the device, disconnect all the cables from the Display and PHU (power hub unit).

Step - 2: Slide up the display and phu from the DBU clamp.

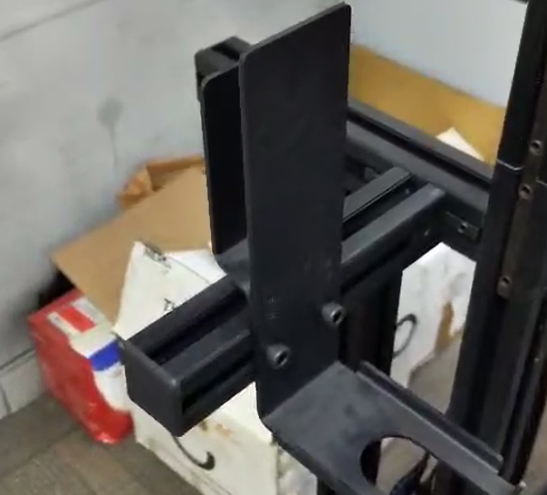

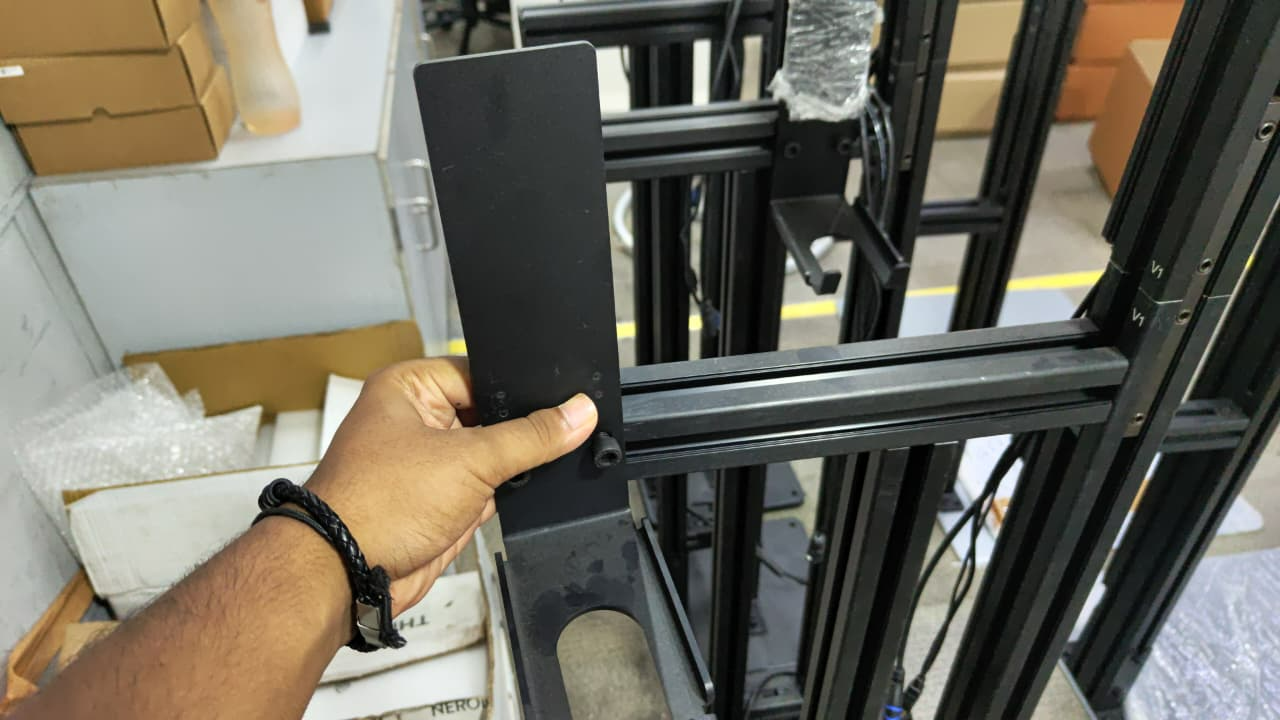

Step - 3: Loosen two 6mm screws mounted in the DBU clamp.

Step - 4: Remove the end cap and slide the DBU clamp and set it aside.

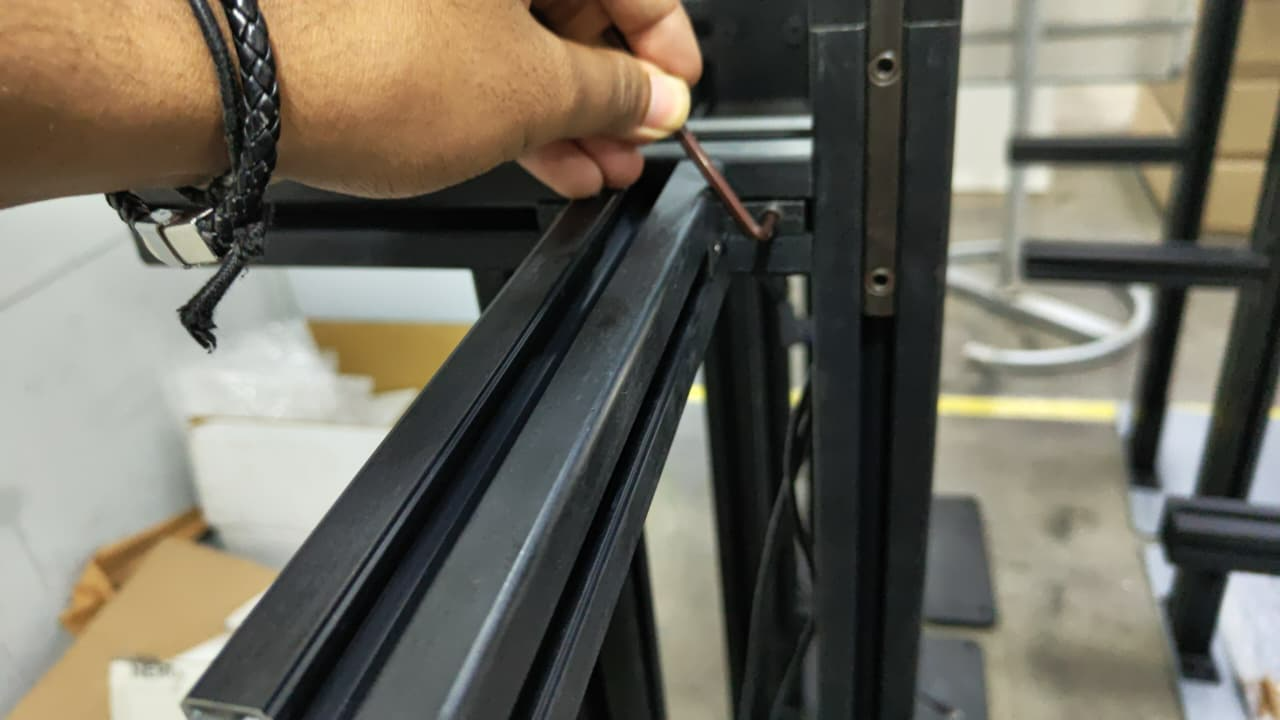

Step - 5: Loosen two 4mm screws of the orientation-rod.

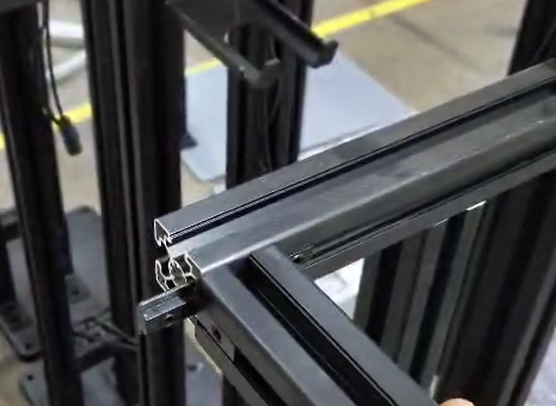

Step - 6: Now slide the orientation rod and set it aside.

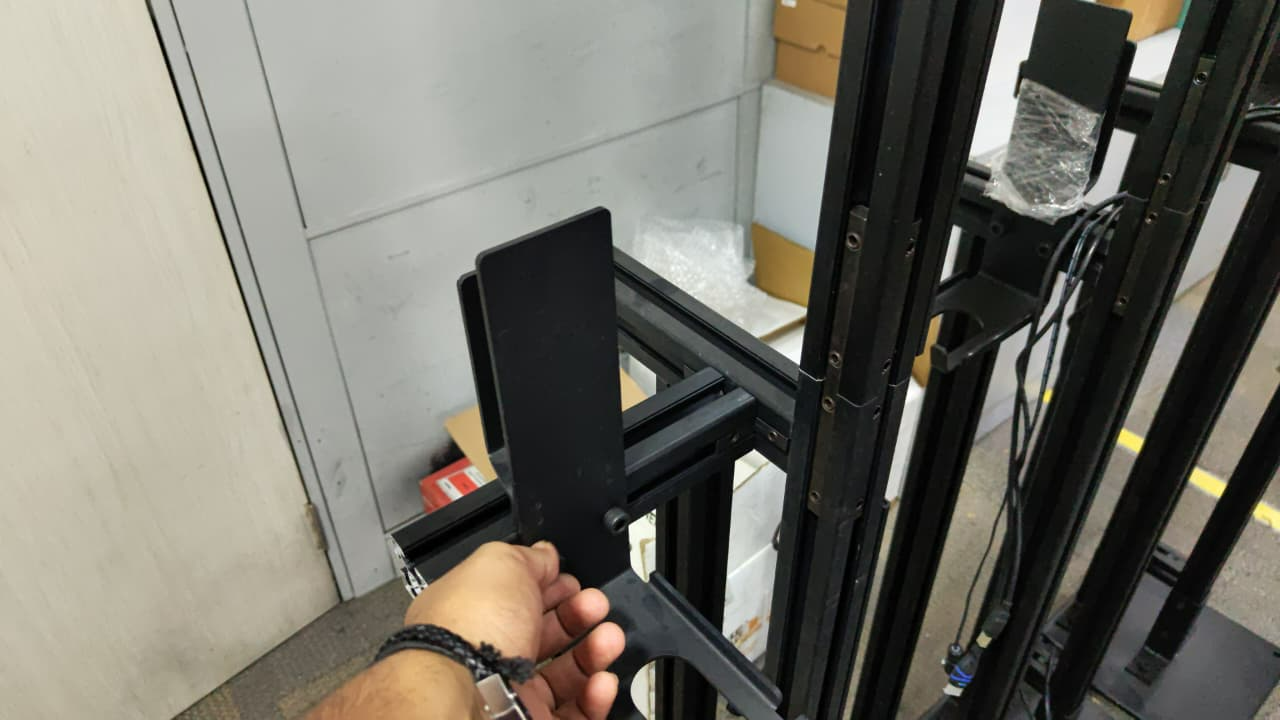

Step - 7: Now slide in the DBU clamp into the base pole.

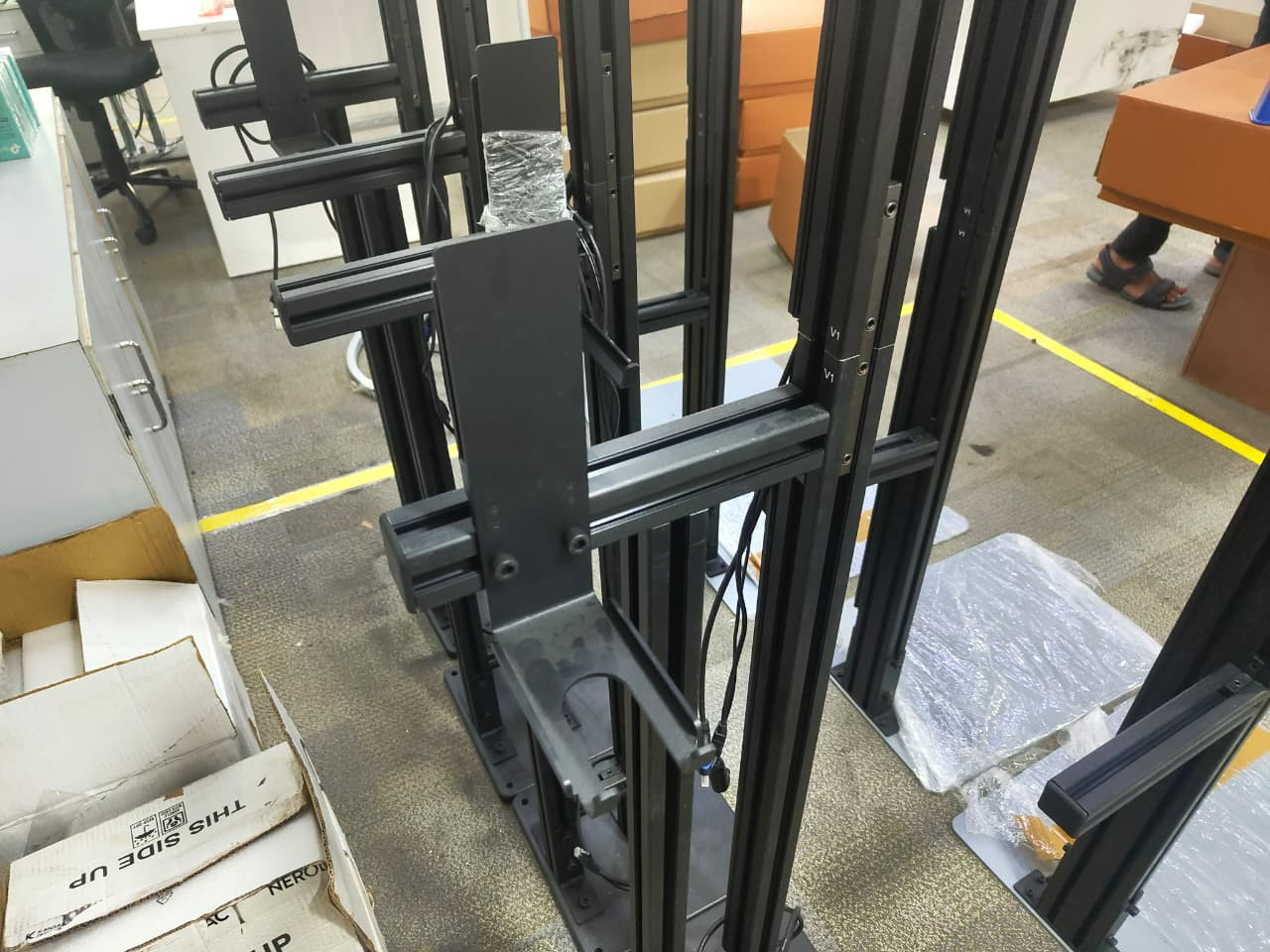

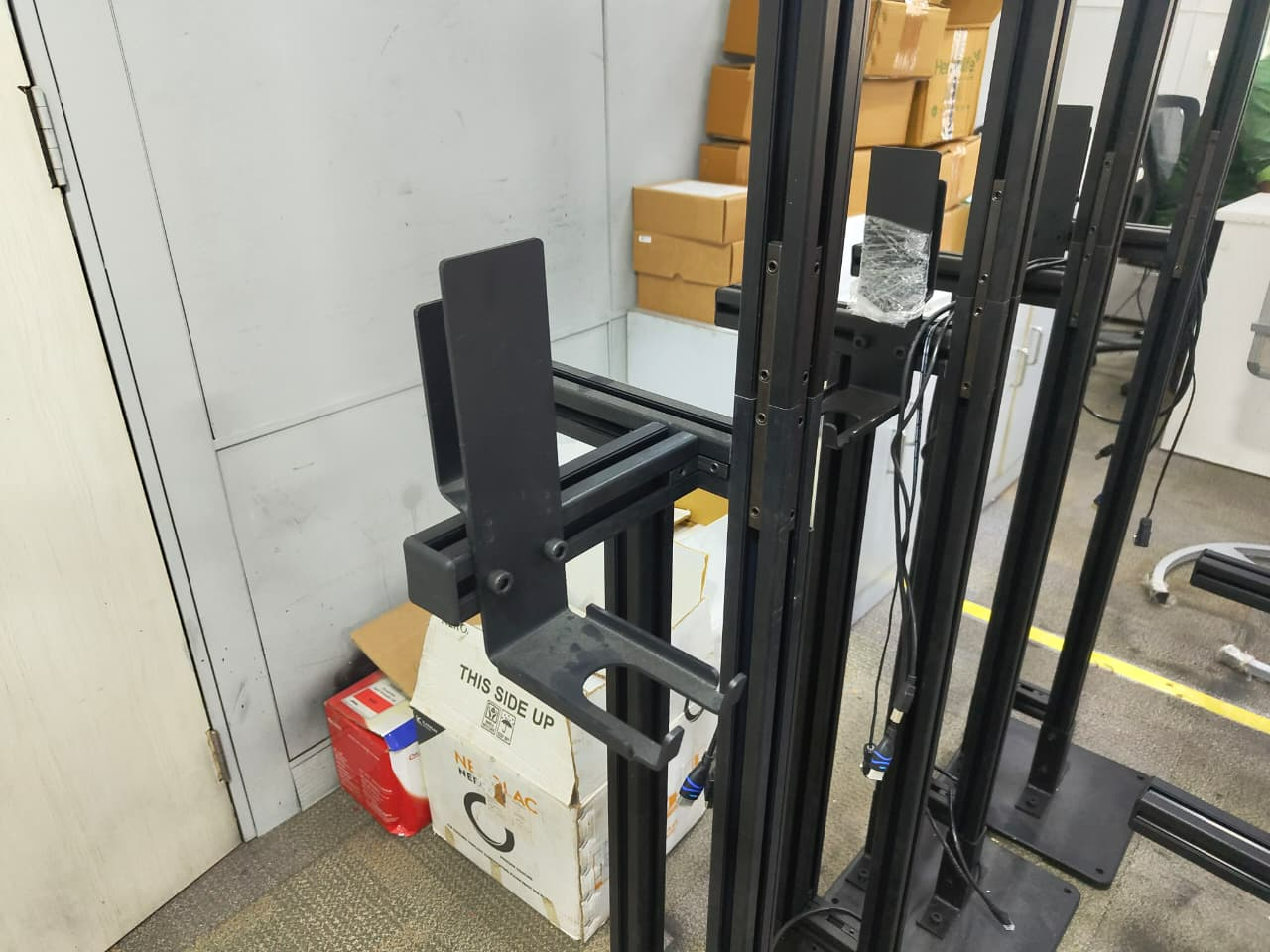

Step - 8: Position the clamp an inch or two from the end cap and tighten the 6mm screws & close the end cap.

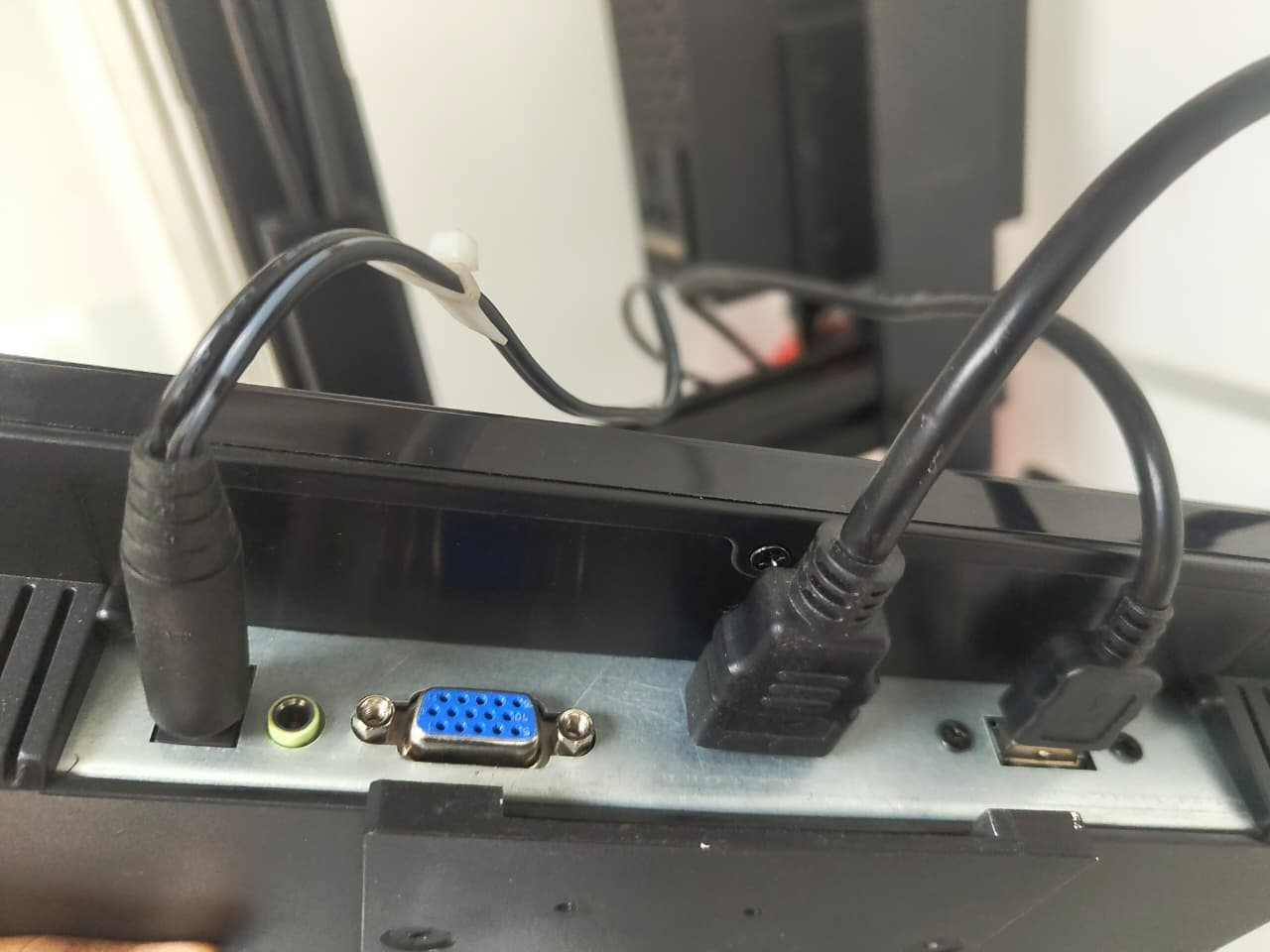

Step - 9: Slide the display and phu to the DBU clamp & reconnect all the display and phu cables.

Additionally reference video is attached.
