How to connect the device to Wi-Fi:

Note: Please ensure the vMeasure device is with-in the good signal range from the Wi-Fi router/dongle for better connection.

Step 1: Plug the Wi-Fi dongle in one of the USB ports in the SMPS or the VHU of the device then go to settings page.

On Device:

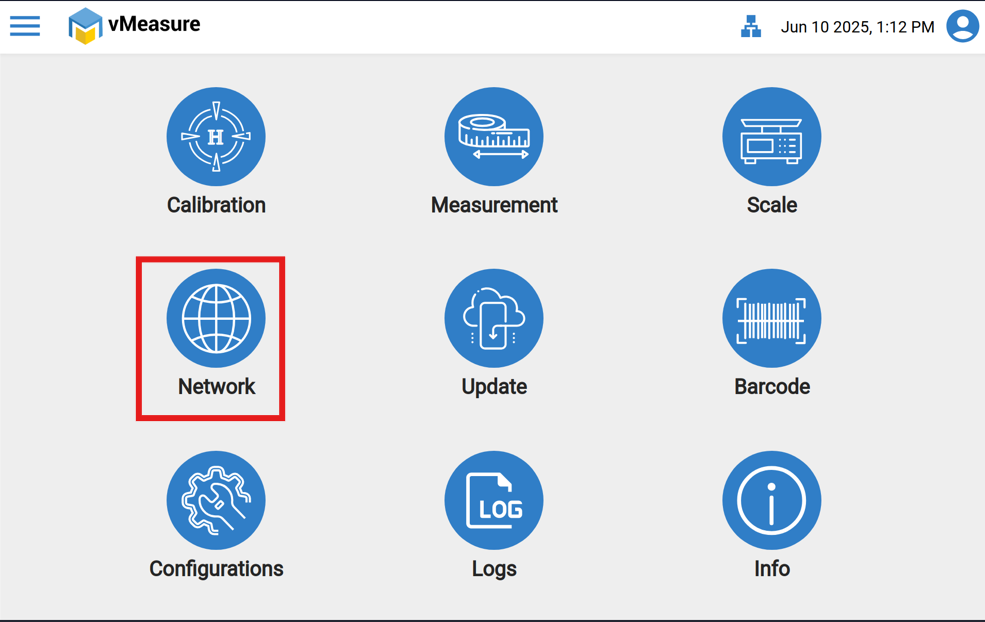

Step 1: Click the  "Network " icon.

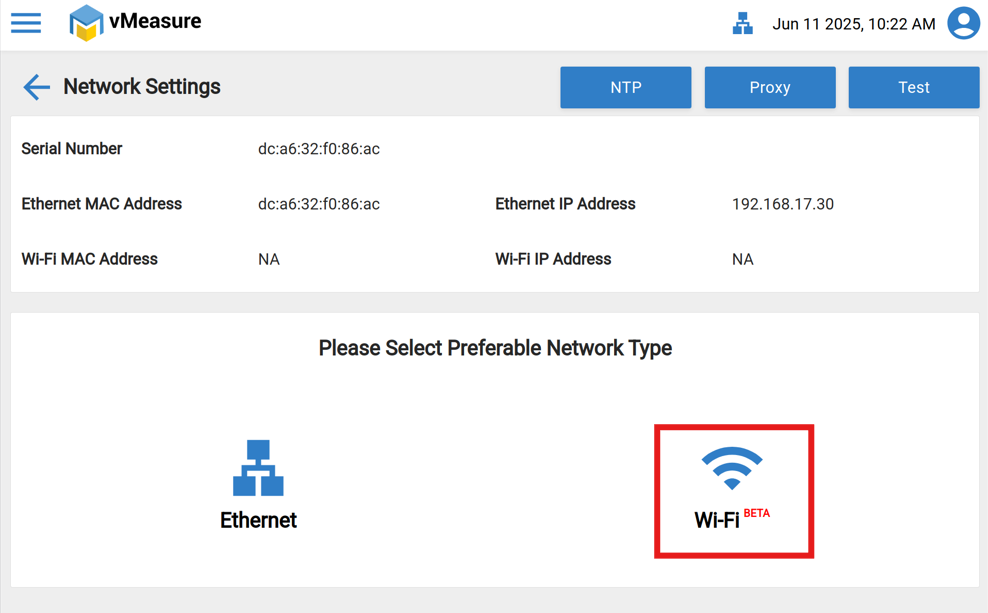

Step 2: "Wi-Fi", make sure the Wi-Fi adaptor is connected to the vMeasure device.

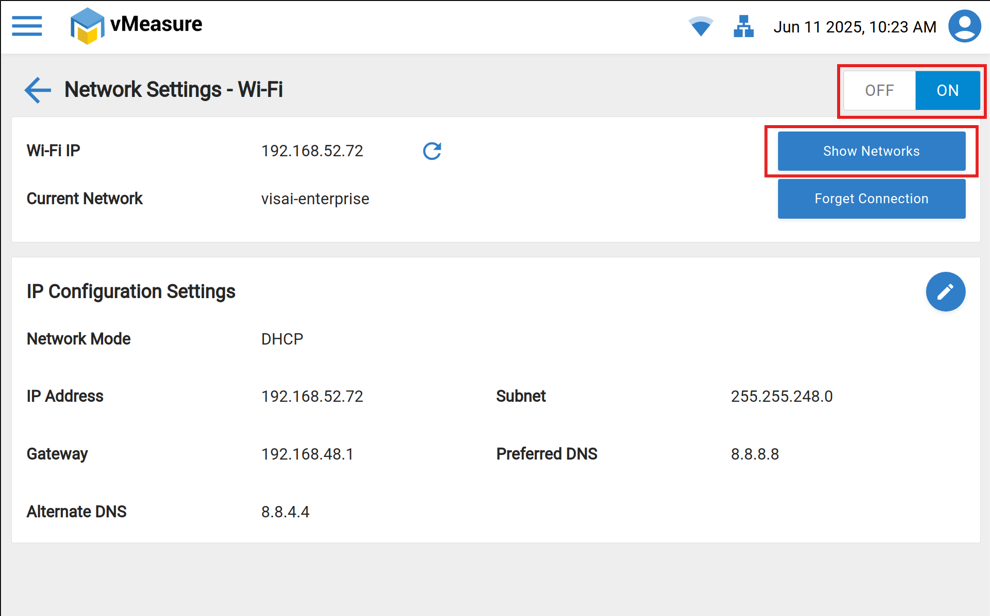

Step 3: Turn on the Wi-Fi using the toggle button, then click on “Show Networks” and select the wifi .

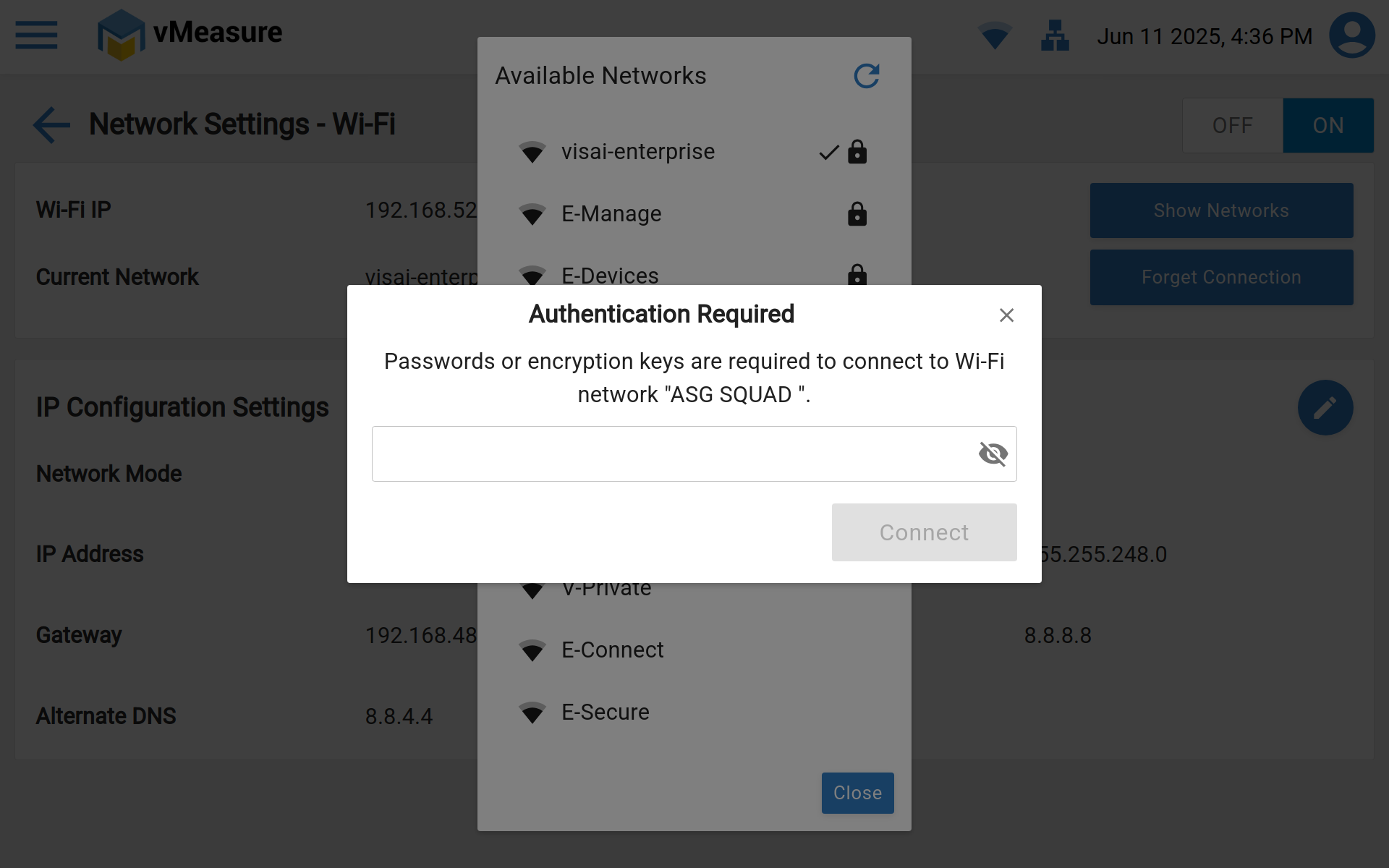

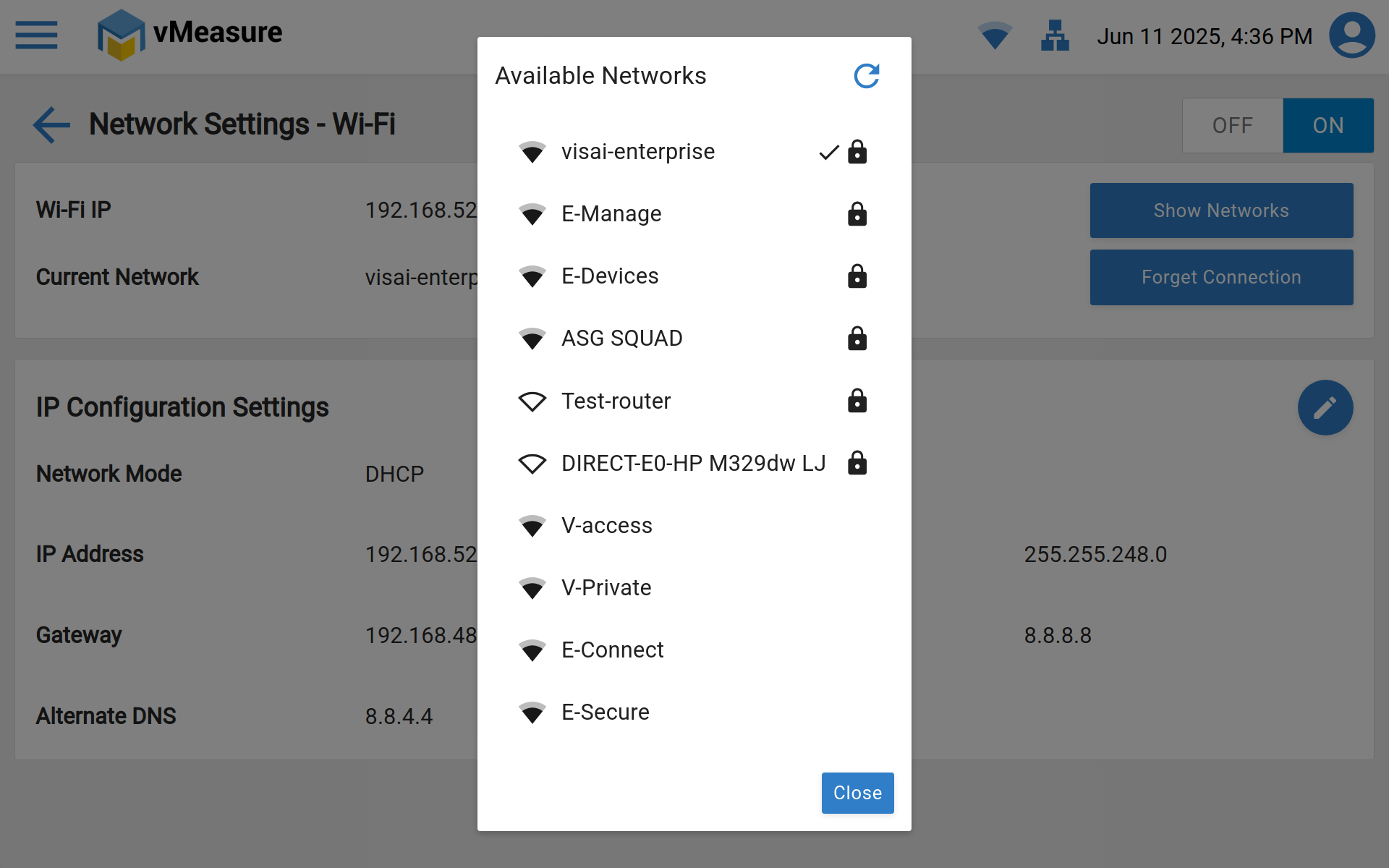

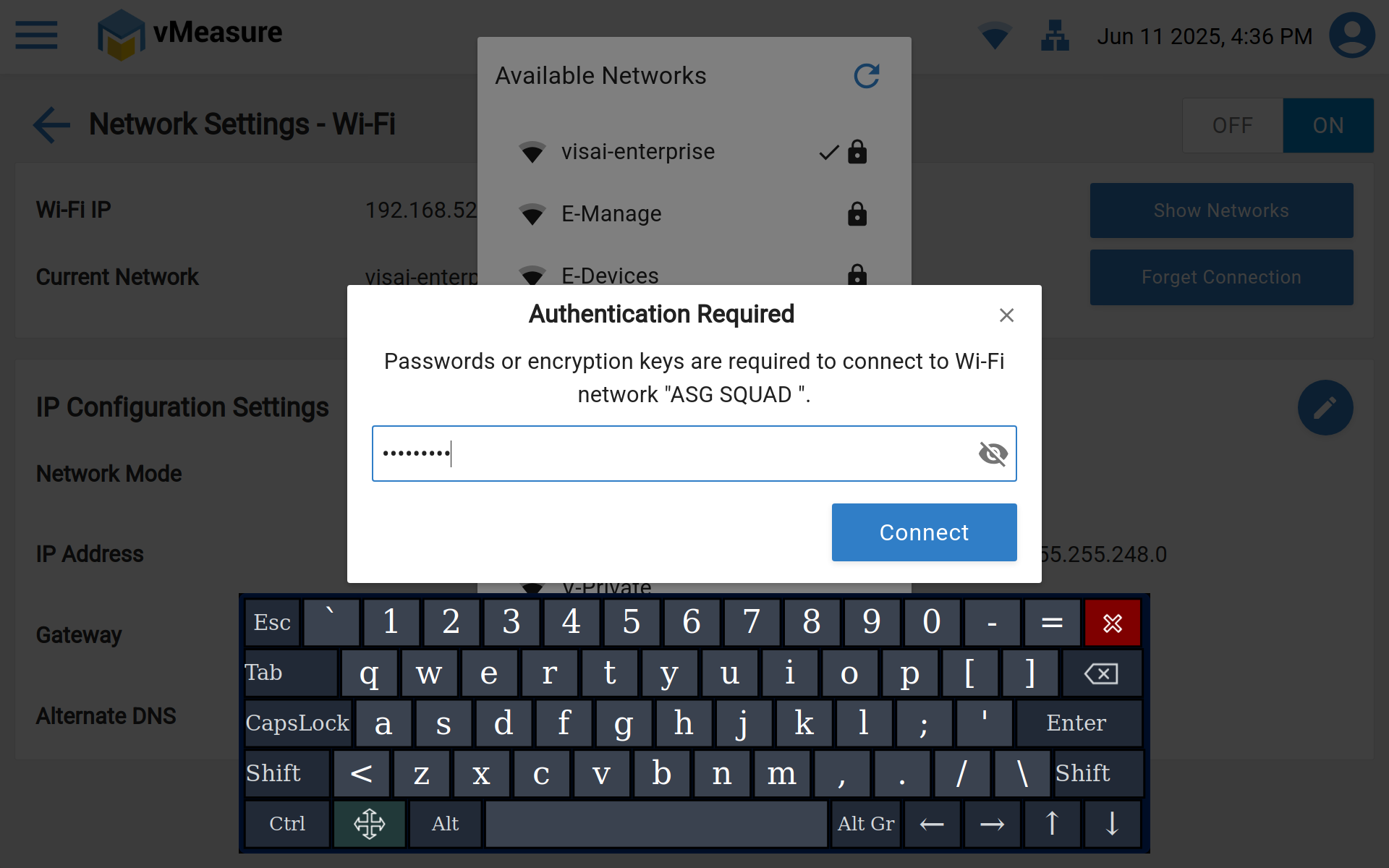

Step 4: Click on Refresh Icon & select the Network from the list & enter the password and click on "Connect".

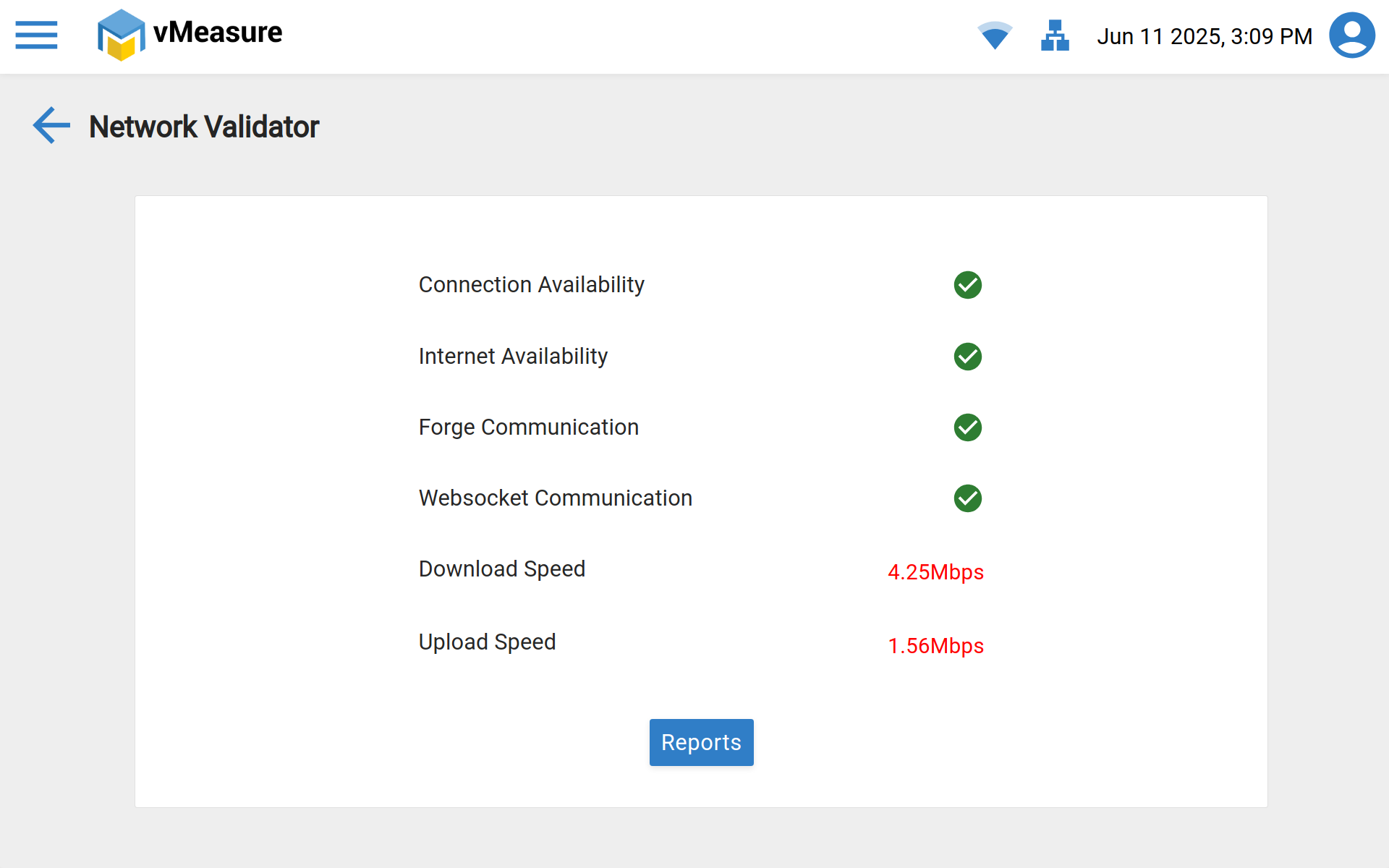

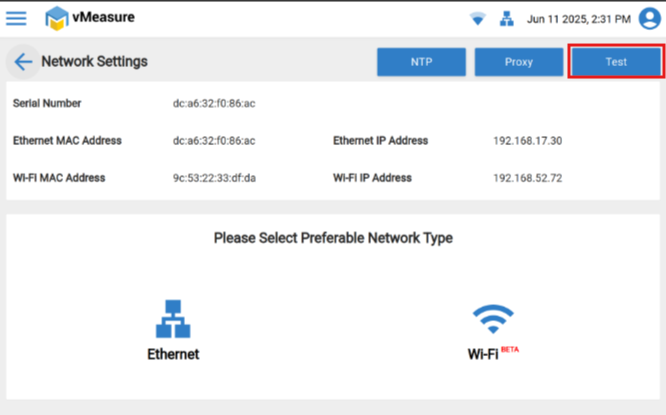

Step 5: Now Wi-Fi will be connected & you can find the Wi-Fi IP address. Click on “Test” icon to validate the
Network connection.

Still encountering any issues?

If yes, then please ensure that Forge URL's & ports are whitelisting on your Network firewall, Click here for Forge URL's.

If you still need any support, drop a mail to vmeasure@visailabs.com.
