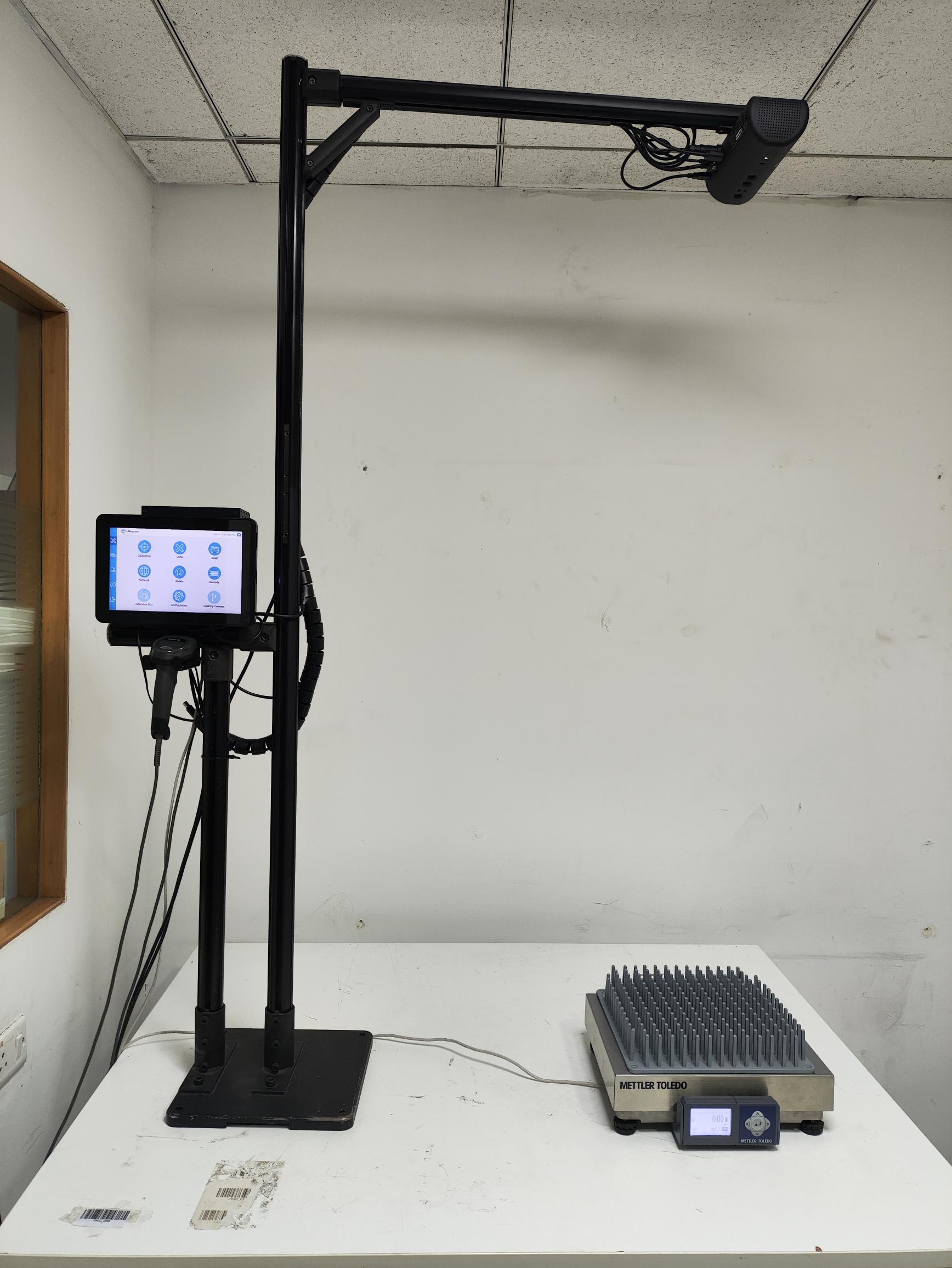

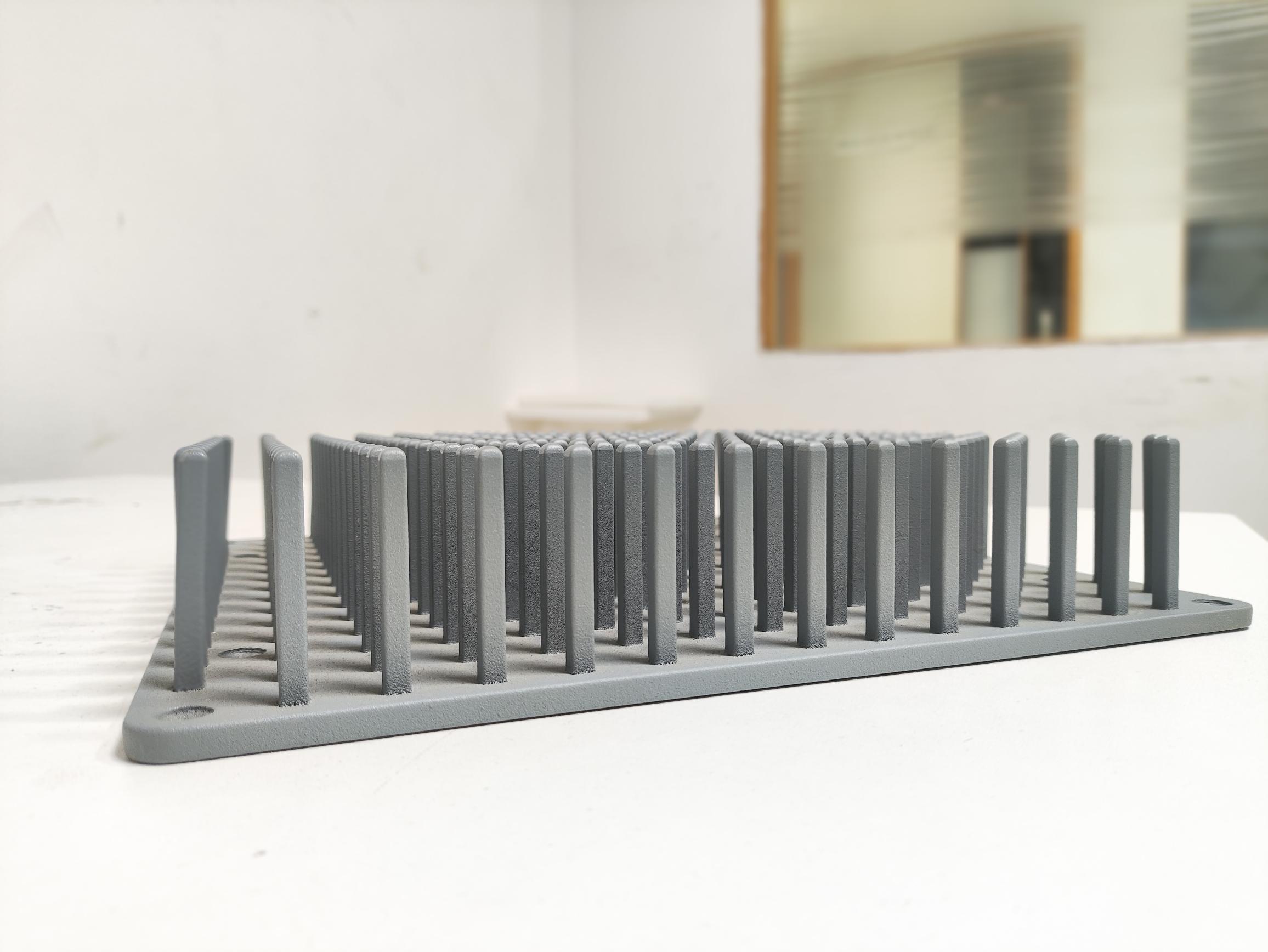

The Envelope Base Plate is an additional accessory that will be added on the weighing scale to scan flat/thin parcels on 1.5 Meter setup.
PFA image below.
Non - Envelope Mode 1.5M:
In 1.5Meter All parcel Mode (Non-Envelope Mode) the minimum measurable dimension will be LxBxH - 2.0 x 2.0 x 2.0 inch.
PFA table below for reference.
| Non - Envelope Mode 1.5M (In inches): | ||
| Minimum dimension | Regular | 2.0 X 2.0 X 2.0 inches |
| Irregular | 2.0 X 2.0 X 2.0 inches | |
| Maximum dimension | Regular | 23.6 X 19.6 X 29.5 inches |
| Irregular | 23.6 X 19.6 X 29.5 inches | |
| Accuracy | Regular | +/- 0.4 inches for Length, Width and height |
| Irregular | +/- 0.4 inches for Length, Width and height | |
Non - Envelope Mode 1.5M (In Centimeters):
| Non - Envelope Mode 1.5M (In Centimeter): | ||
| Minimum dimension | Regular | 5 x 5 x 5 cm |
| Irregular | 5 x 5 x 5 cm | |
| Maximum dimension | Regular | 60 x 50 x 75 cm |
| Irregular | 60 x 50 x 75 cm | |
| Accuracy | Regular | +/- 1.0 centimeter for Length, Breadth and height |
| Irregular | +/- 1.0 centimeter for Length, Breadth and height | |
Envelope Mode 1.5M:
In 1.5 Meter All parcel Mode (Envelope Mode) the minimum measurable dimension will be L x B x H - 1.6 x 1.6 x 0.04 inch. PFA Table below for reference.
Envelope Mode 1.5M (In inches):
| Envelope Mode 1.5M (In inches): | ||
| Minimum dimension | Flat | 1.6 X 1.6 X 0.04 inches |
| Bulged | 1.6 X 1.6 X 0.04 inches | |
| Maximum dimension | Flat | 23.6 X 19.6 X 29.5 inches |
| Bulged | 23.6 X 19.6 X 29.5 inches | |
| Accuracy | Flat | +/- 0.4 inches for Length, Breadth and height |
| Bulged | +/- 0.4 inches for Length, Width and height | |
| Nail height | 2 inches | |
Envelope Mode 1.5M (In Centimeters):
| Envelope Mode 1.5M (In Centimeter): | ||
| Minimum dimension | Flat | 4 x 4 x 0.1 cm |
| Bulged | 4 x 4 x 0.1 cm | |
| Maximum dimension | Flat | 60 x 50 x 80 cm |
| Bulged | 60 x 50 x 80 cm | |
| Accuracy | Flat | +/- 1.0 centimeter for Length, Breadth and height |
| Bulged | +/- 1.0 centimeter for Length, Breadth and height | |
| Nail height | 5 Centimeter | |
Additionally, I have attached a link of Envelope Base Plate Demo: Click Here To Watch The Video
What will you see in the video?
- The placement of the metal envelope base plate on the weighing scale.
- Calibrating the device.
- Measurement of thin items like a book, a small box, a face-cream tube, and an envelope.
- Measurement of a medium sized carton box
Additionally, I have attached a document titled "Ultima_Spec_and_Limitations v1.0" for your reference.
If you need any support, please drop a mail to vmeasure@visailabs.com
